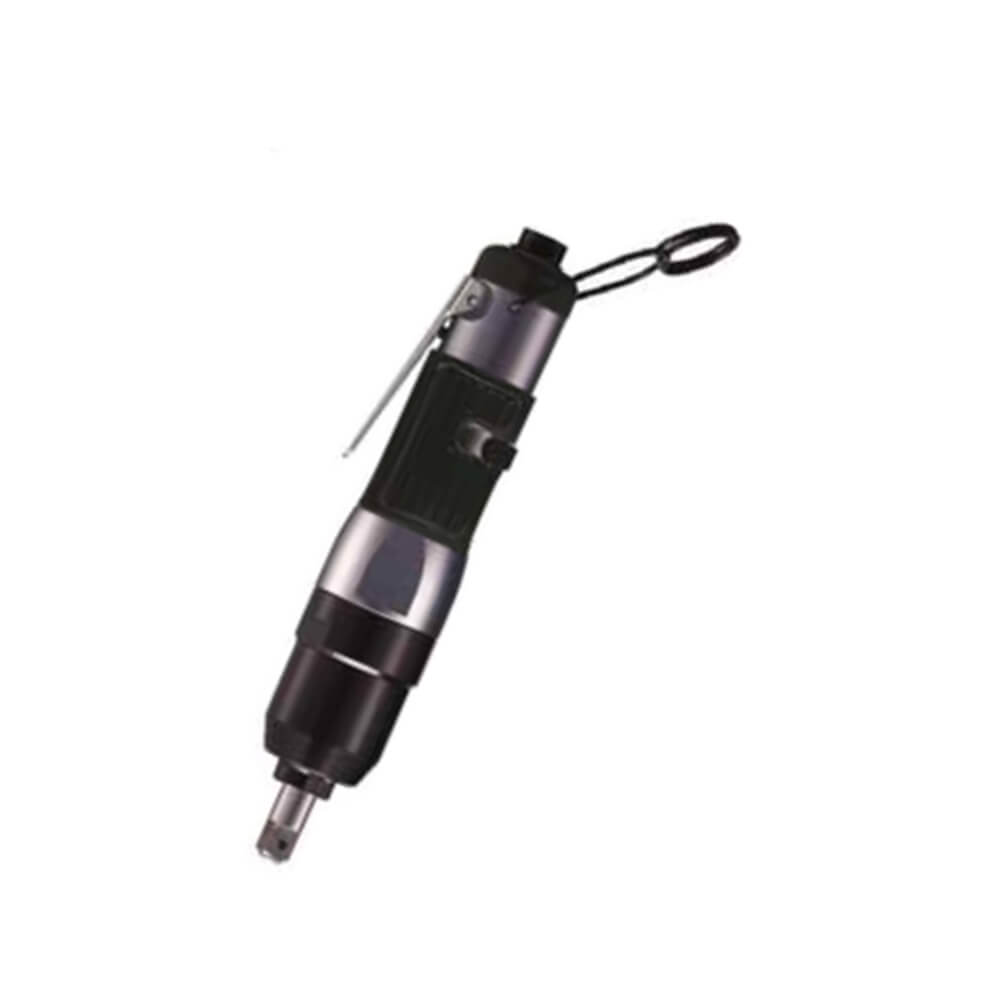

BMI-BMIS Series – Stright Type

Equipped with the new single-body engine and the patented double-blade pulse unit, the BMI / BMIS series guarantees performance and durability in all types of joints with very low vibration and noise levels. The BMI / BMIS range is able to respond, thanks to the wide range of models and tightening torques, to all assembly operations in a range between 6 and 450 Nm both with and without a torque control system shut -off.




Description

The BAMASON range of hydraulic impulse tools represents the best compressed air impulse technology on the market, only the BMI / BMIS series is in fact able to guarantee tightening accuracy with precision equal to 10% (ISO5393) certified by the manufacturer making it an instrument indispensable for all applications where speed and precision play a decisive role in production timing. Thanks to this unique and patented feature, the tools of the BMI / BMIS series have been tested, certified and standardized by the major manufacturers in the MVI sector, quickly becoming a point of reference in the specific segment of this type of tool.

Applications

Any screwing operation on structural assembly lines

Operation where required high operating speed and reduced cycle times

Screwing operations where precision is required

Strengths

Best clamping accuracy (± 10%) in the category

• Low operating costs

• Ergonomic handle for improved comfort operator

• Progressive trigger for more control

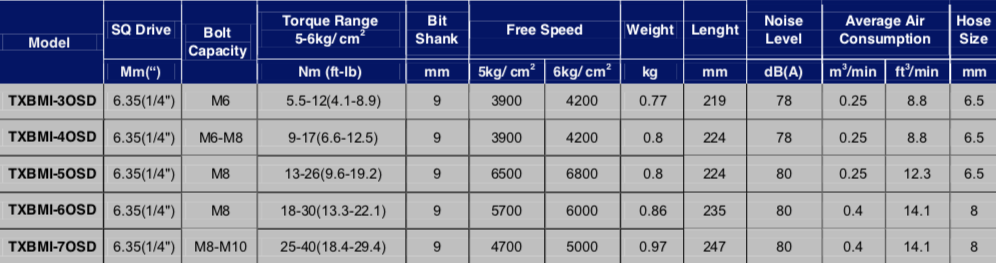

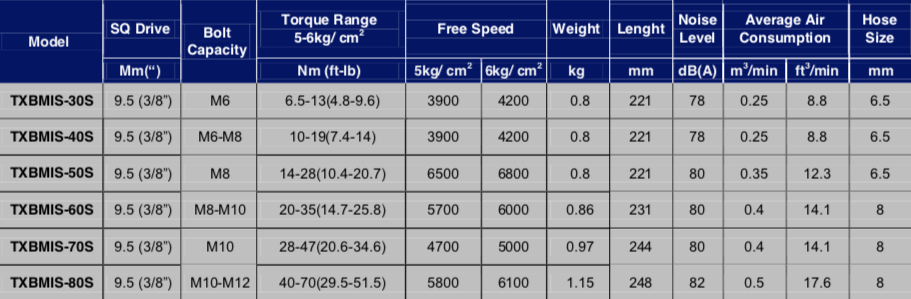

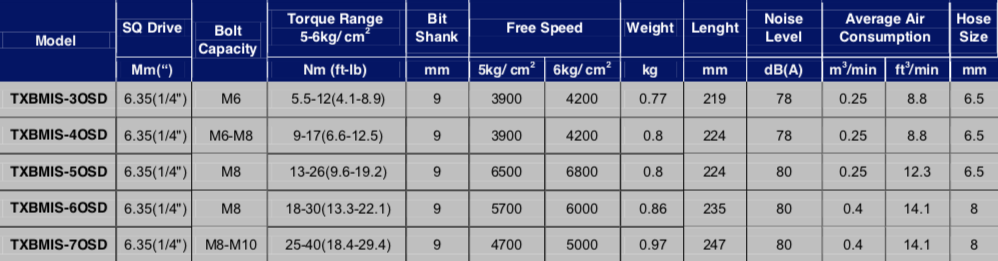

Table

Schermata 2019 07 11 alle 15.22.14  Avvitatori per assemblaggio industriale Equipped with the new single-body engine and the patented double-blade pulse unit, the BMI / BMIS series guarantees performance and durability in all types of joints with very low vibration and noise levels. The BMI / BMIS range is able to respond, thanks to the wide range of models and tightening torques, to all assembly operations in a range between 6 and 450 Nm both with and without a torque control system shut -off. Schermata 2019 07 11 alle 15.22.31  Avvitatori per assemblaggio industriale Equipped with the new single-body engine and the patented double-blade pulse unit, the BMI / BMIS series guarantees performance and durability in all types of joints with very low vibration and noise levels. The BMI / BMIS range is able to respond, thanks to the wide range of models and tightening torques, to all assembly operations in a range between 6 and 450 Nm both with and without a torque control system shut -off. Schermata 2019 07 11 alle 15.22.00  Avvitatori per assemblaggio industriale Equipped with the new single-body engine and the patented double-blade pulse unit, the BMI / BMIS series guarantees performance and durability in all types of joints with very low vibration and noise levels. The BMI / BMIS range is able to respond, thanks to the wide range of models and tightening torques, to all assembly operations in a range between 6 and 450 Nm both with and without a torque control system shut -off. Schermata 2019 07 11 alle 15.21.44  Avvitatori per assemblaggio industriale Equipped with the new single-body engine and the patented double-blade pulse unit, the BMI / BMIS series guarantees performance and durability in all types of joints with very low vibration and noise levels. The BMI / BMIS range is able to respond, thanks to the wide range of models and tightening torques, to all assembly operations in a range between 6 and 450 Nm both with and without a torque control system shut -off.
