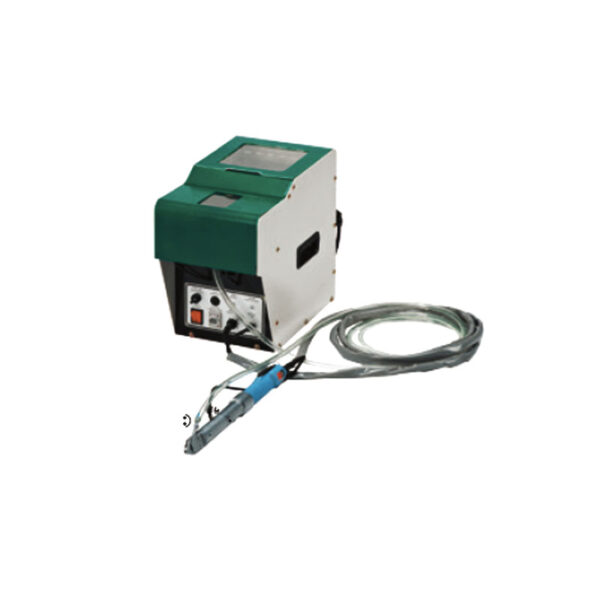

CM40T

The CM series self-powered systems are born with the specific aim of screwing medium and large series of screws with greater productivity. The screw is automatically sent to the screw holding device in the screwdriver head and it is possible to proceed immediately with the screwing. the work is simplified because the manual screw gripping phases and their positioning on the screwdriver insert or on the piece are eliminated thus reducing the screwing cycle times




Description

The CM automatic tilting blade feeding systems are among the most precise, silent and reliable. They can be used in manual, semi-automatic or fully automatic applications. The tilting blade system selects the screws from the collection compartment and the doors, by fall, on the guide (version CM-30-CM30T) or on the vibrating linear guide (version CM40-CM40T) and then head towards the shot selector. Screw loading is automatically controlled by an optical fiber that detects or not the presence of the screws thus ensuring continuity of operations. Inside the air pressure selector, it sends the screw, through a flexible tube, to the head holding the screw located on the screwdriver

The CM series self-powered systems offer countless advantages
– They reduce the manual phases of the operator to the sole activation of the system, avoiding the steps of screw insertion on the insert or on the piece
– They ensure a continuous work cycle through a patented and fully automatic feeding system
– They reduce the tightening times by 35%
– Increase productivity, improving operator ergonomics and reducing cycle times
– Reduce costs: by avoiding wasted time for screwing and positioning phases, they allow a return on investment in a very short time.

Applications

  • Applicable to all thread screws from M2,6 to M6 mm
  • For all those screws with a large head or integrated washer
  • Equipped with self-advancing system Ideal for threaded holes
  • Suitable for processing in the most varied sectors where speed and production optimization are required
  • Configurable with different engines
  • System with signal for start by lever motors

Strengths

  • Automatic cycle management: Just press the lever and the screwdriver will automatically complete the screw fixing.
  • Equipped with linear track for sliding screws with large heads or with washer
  • Automatic feeding of the screw firing system activated by optical fiber for the presence of screws
  • Offers faster operating speed of up to 30 screws per minute.
  • The self-advancing system presses and holds the screw down during the screwing phase, facilitating its entry and avoiding that the jaws of the head come into contact with the surface, minimizing operator fatigue

Table
