E-HANDLE

The Jaeger handle knobs for automation use represent the ideal components to support or enslave all automatic or semi-automatic operations.
The complete range of management options together with the complete series of accessories make Jaeger handles adaptable to any specific need.
e-handle: operating handles and electronic management
p-handle: operating handles and pneumatic management
t-handle: electrically operated and operated handles
c-handle: electrically operated handle with presence sensor
d-handle: handle without drives for simple support
we suggest for greater convenience to refer to our automation catalog




Categories: ,

Description

commercial data:

• customs tariff number: 84679900

• country of origin: Germany

product benefits :

• due to the compact, modular construction and functional design, the e-handle can be flexibly adapted to nearly any application

• ergonomic handle design enables operation without tiring

• all around arranged LED status spots, green, yellow and red

• rotary switch thumb operated e.g. for direction of rotation

• cable connection pluggable directly at the handle housing

• attachment e-handle with ball/without ball

• optional: with flange connection

• optional: up to 4 switches allocatable

• optional: presence check for operator hand. The operator hand (without glove) will be recognize by at least 3 sensor fields at the shell surface of the handle and switch the respective digital output. This equipment feature is usable for safety-related parts until Plr ≤ b in accordance ISO 13849-1.

• optional: hand lever for manual remote control of mechanical indexing

technical properties:

• temperature range 5°-60°C

• weight approx. 500g

• operating voltage 12V–30V

• operating current <100mA

• load current max. 100mA for each output

• ESD-capable

• input and output signals 24V DC with 24V supply

• all signals at the e-handle are allocated via separate pins exception: control yellow LED via pin allocation green and red

• standard configuration: lever-, axial-, and radial button contact type normally open

• optional: contact type potential-free changeover contact for lever switch and axial button, e.g. for safety two-hand operations

• electrical life time >10.000.000 switch cycles

• mechanical life time > 10.000.000 switch cycles

• protection class: IP54

Applications

  • Automatic applications
  • Semi-automatic applications

Strengths

  • Versatility of use
  • Wide choice of configurations for each category
  • Reliability of use:
  • Easy assembly and installation

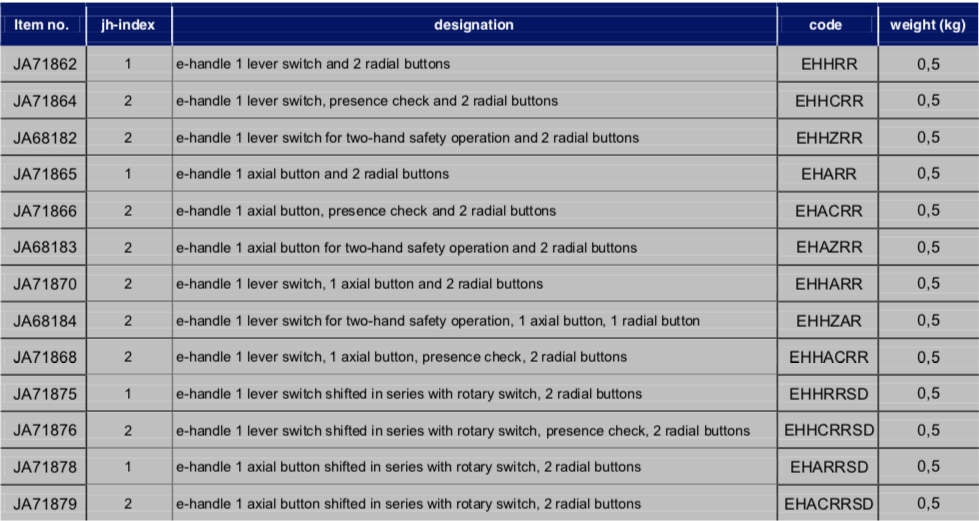

Table
