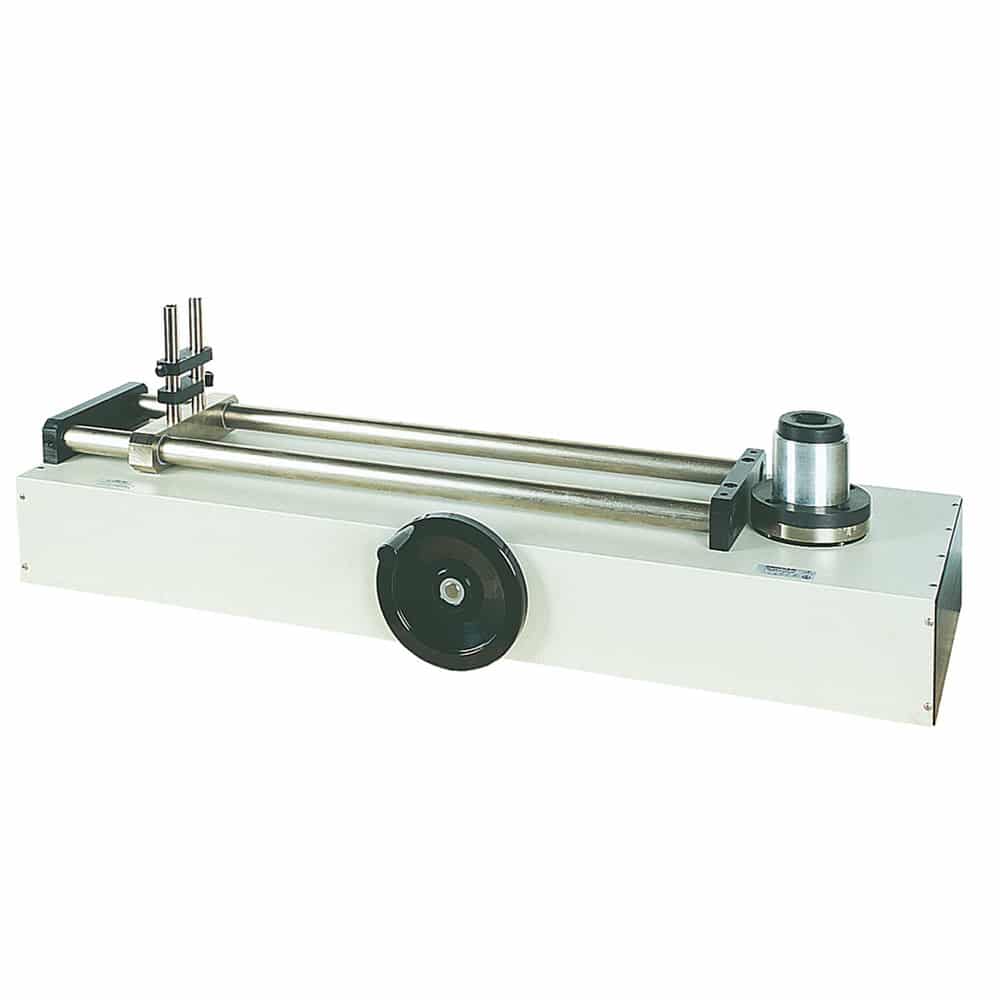

LOADING BENCH

The Loading Bench is a laboratory grade instrument designed to enable accurate torque wrench calibration with less physical effort. The Loading Bench simulates torque application conditions with minimum effort and enhanced safety for the calibration technician assuring a more accurate calibration. The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors. The Loading Bench is designed to calibrate torque wrenches in accordance with International Standards

Calibrating a torque wrench is a fine-tuning process of bringing the torque wrench back within its tolerance. The international standard for torque wrench calibration mandates all conforming wrenches meet or exceed 5,000 cycles before requiring calibration.




Description

The Loading Bench is a laboratory grade instrument designed to enable accurate torque wrench calibration with less physical effort. The Loading Bench simulates torque application conditions with minimum effort and enhanced safety for the calibration technician assuring a more accurate calibration. The calibration instrument enables quick and easy torque wrench calibration and presetting, independent of human influence or transducer side and end load factors. The Loading Bench is designed to calibrate torque wrenches in accordance with International Standards

Calibrating a torque wrench is a fine-tuning process of bringing the torque wrench back within its tolerance. The international standard for torque wrench calibration mandates all conforming wrenches meet or exceed 5,000 cycles before requiring calibration.

The drive system of the Loading Bench assures the load application eliminates potential operator induced test errors.  Built for durable use, the Loading Bench reduces the operator effort required to attain and sustain torque during the calibration process.

Applications

  • To calibrate mechanical adjustable wrench
  • To calibrate mechanical preset wrench

Strengths

  • A calibration system that ensures accurate torque wrench calibration.
  • A drive system that assures load application, which eliminates any operator induced test error.
  • A durable build, which reduces the operators effort required to attain and sustain torque during the calibration process.
  • A large wheel for smooth manual loading.
  • Both clockwise and counter-clockwise operation.
  • A selection of models ranging from 0-2000 lbf.ft
  • The ability to mount on a bench or cabinet.
  • Adjustability to the size of the wrench being tested.
  • Easy to use with a Mountz BMX Torque Sensor and a, LTT or PTT torque analyzer or directly install on Airtechnology TRACEMAKER® bench test

Table
