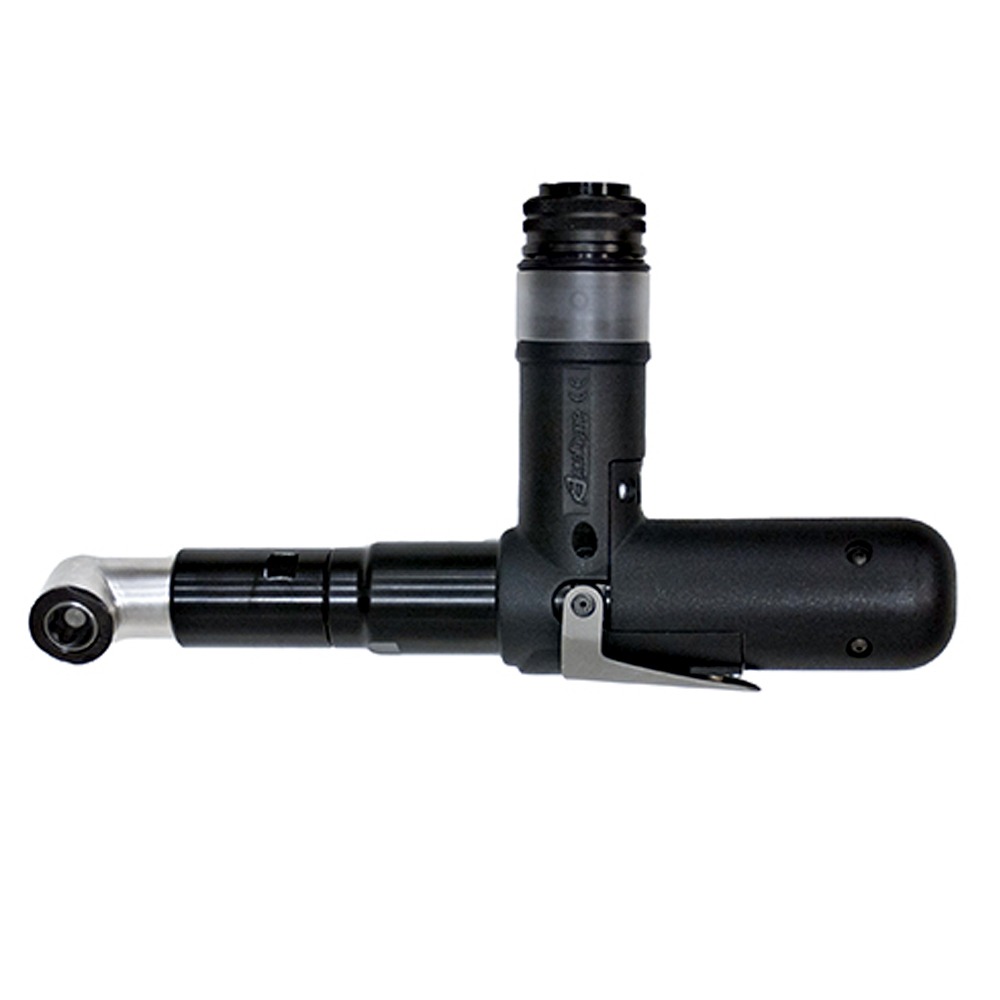

Mid-Exit Cable Nutrunners




Description

The particular shape of these tools and the possibility of customizing the output drives makes the Mid Exit cable tools the ideal solution for tightening in particularly difficult positions such as doors in the MVI sector.

Applications

All assembly applications with critical joints for safety or where high quality tightening and process control are required.

– Ideal for fixed assembly applications for manual use.

–All door assembly processes in the MVI sector.

Strengths

– Torque range from 15 to 40 Nm.

– 2000 series engines, offer speed range from 525 to 700 rpm.

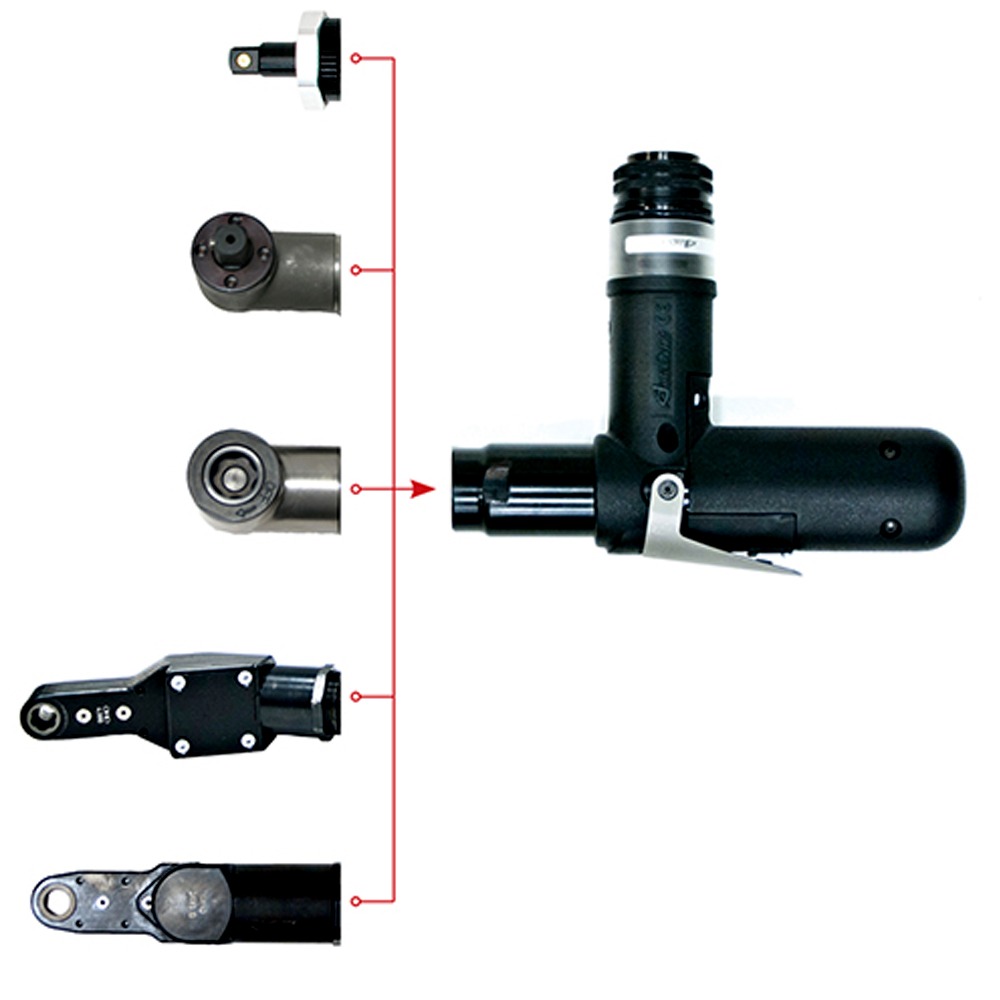

– Ergonomic high design, simple and easy to combine with different clamping heads.

– Reduced length thanks to the front and non-rear cable exit, make the tool more ergonomic and manageable and the particular shape guarantees low reaction forces.

– Traceability of processes in data, curves, analysis and statistics together with IEC controller.

– Complete compatibility with Airtechnology software for data collection, positioning systems and process management.

ADDITIONAL TECHNICAL FEATURES: download technical sheet or request more information.

Table

tabella  Avvitatori per assemblaggio industriale The particular shape of these tools and the possibility of customizing the output drives makes the Mid Exit cable tools the ideal solution for tightening in particularly difficult positions such as doors in the MVI sector.
