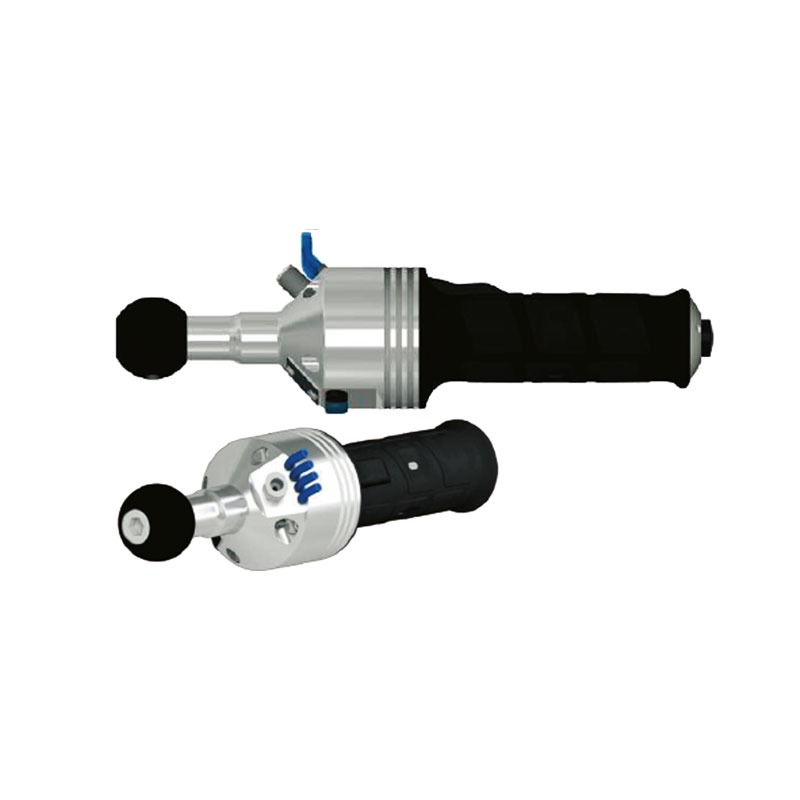

P-HANDLE

The Jaeger handle knobs for automation use represent the ideal components to support or enslave all automatic or semi-automatic operations.
The complete range of management options together with the complete series of accessories make Jaeger handles adaptable to any specific need.
e-handle: operating handles and electronic management
p-handle: operating handles and pneumatic management
t-handle: electrically operated and operated handles
c-handle: electrically operated handle with presence sensor
d-handle: handle without drives for simple support
we suggest for greater convenience to refer to our automation catalog




Description

commercial data:

• customs tariff number: 84679900

• country of origin: Germany

technical properties:

• weight approx. 550g

• flow volume per valve: 50l/min for 5bar

• all buttons as 3/2-valve with spring reset

• ESD-capable

• mechanical life time (B10) > 6.000.000 switch cycles

product benefits:

• due to the compact, modular construction and functional design, the

p-handle can be flexibly adapted to nearly any application

• ergonomic handle design enables operation without tiring

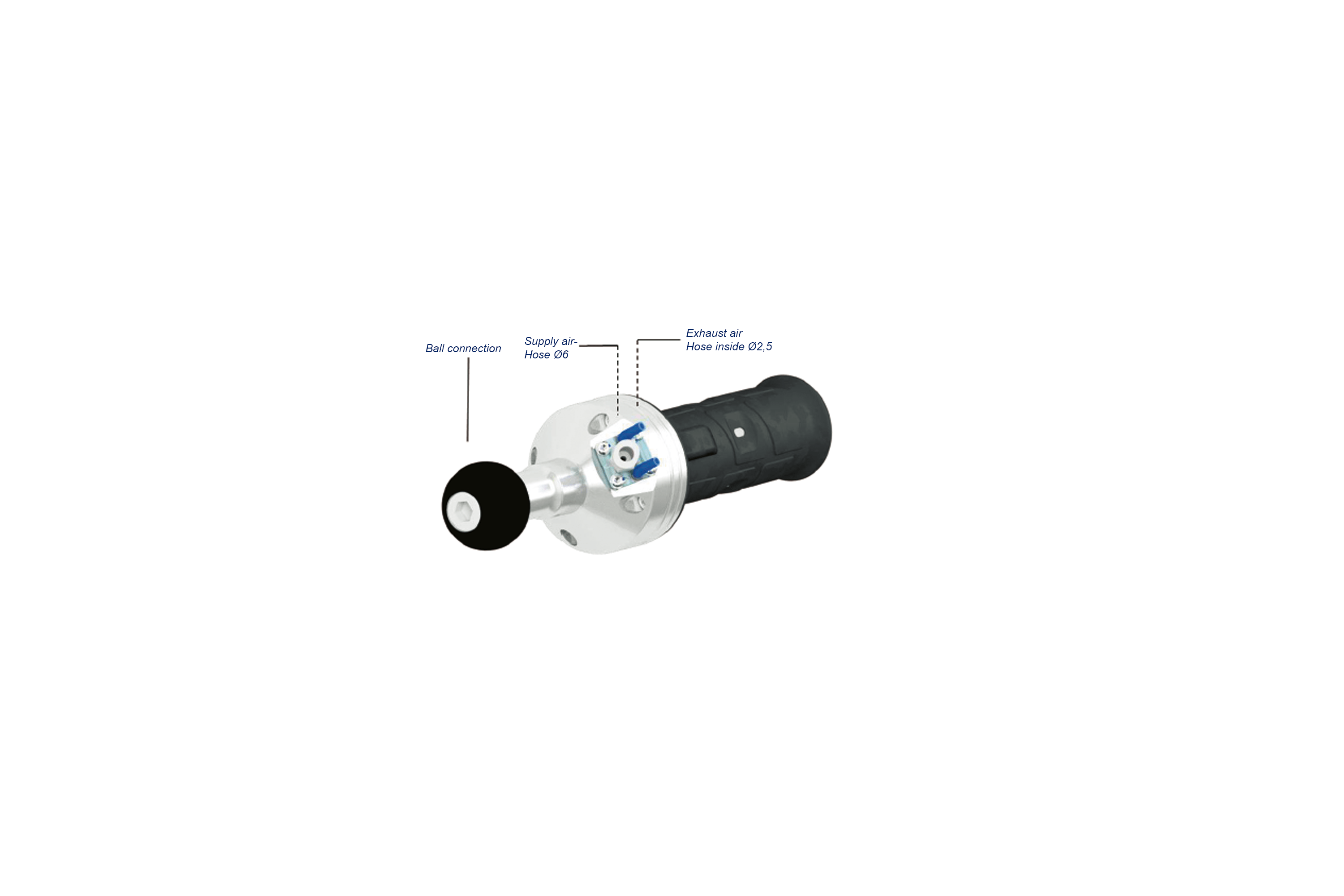

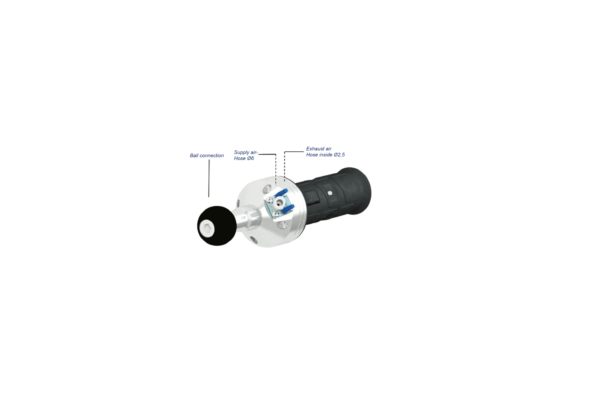

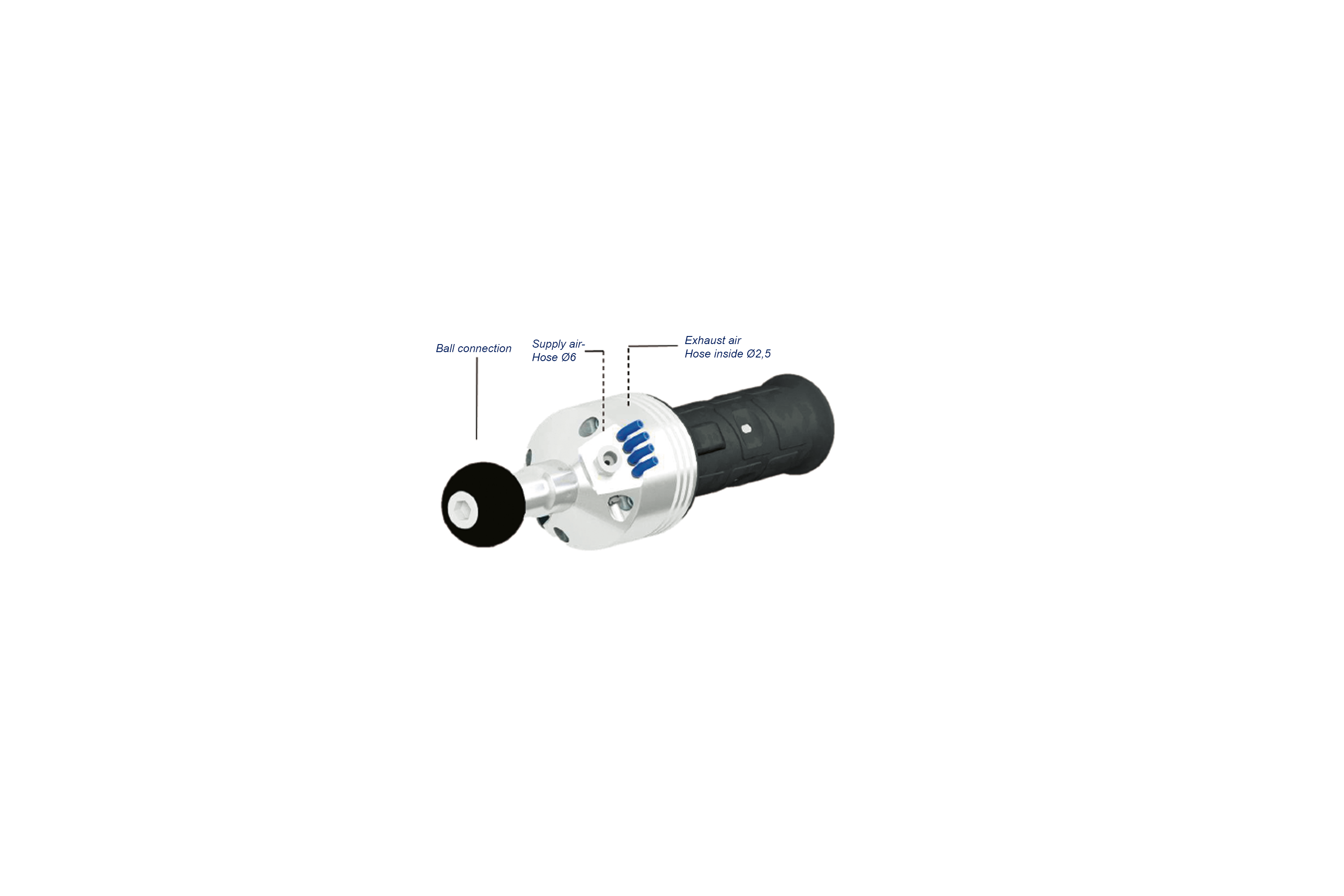

• hose connections directly at the handle housing pluggable

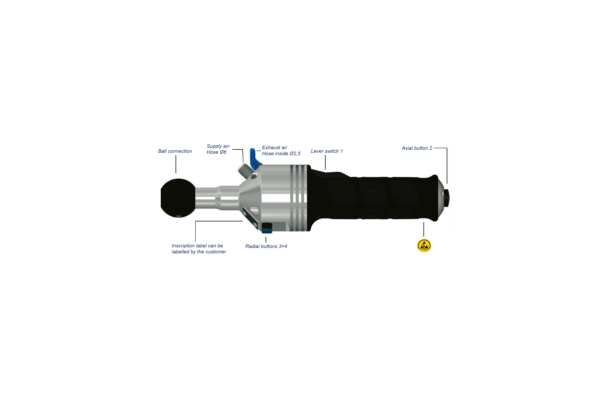

• attachment p-handle with ball connection/without ball connection

• optional: with flange connection

• optional: up to 4 switches allocatable

• optional: hand lever for manual remote control of mechanical indexing

Applications

  • Automatic applications
  • Semi-automatic applications

Strengths

  • Versatility of use
  • Wide choice of configurations for each category
  • Reliability of use:
  • Easy assembly and installation
