SD-BC SERIES

Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.




Description

Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.

The high-efficiency brushless motors offer prolonged accuracy of time while the ergonomic design defines high levels of comfort for the operators

Available in the widest range of pairs available on the market, they are available both in the traditional straight versions with lever and push starting, both in the gun versions and for automation use.

SD-BC SERIES SCREWDRIVER

The SD-BC series of low voltage screwdrivers represent the final technological evolution of proven experience. Through the on-site micro-display, speed adjustments and screw count management are possible.

Applications

Ideal for all fastenings with standard joints

– Ideal for applications for manual use

– Ideal in applications where the certainty of tightening of all the screws is necessary

– Where required output signal (only version with controller SD-30V75W-8P-BC)

Strengths

Torque range from 0.01 to 4.9 Nm

– High efficiency brushless motors

– Ergonomic design with proven comfort in use

– Controller with output signals and possibility of connection to infrared sensors for picking components

– Reporting by operator through batch count screws which ensures that all the components in the process have been tightened

– Soft stop system for minimum reaction

– Available bought in a version with output signal than in a standard version

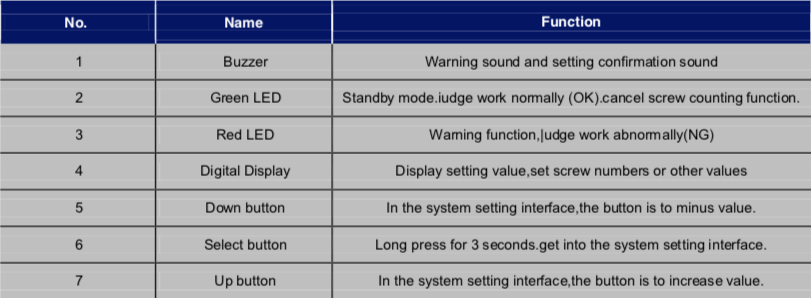

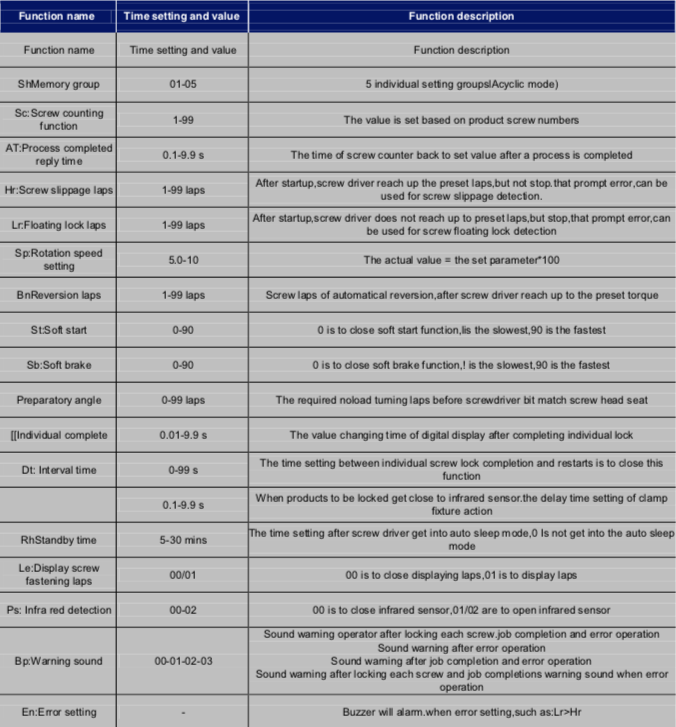

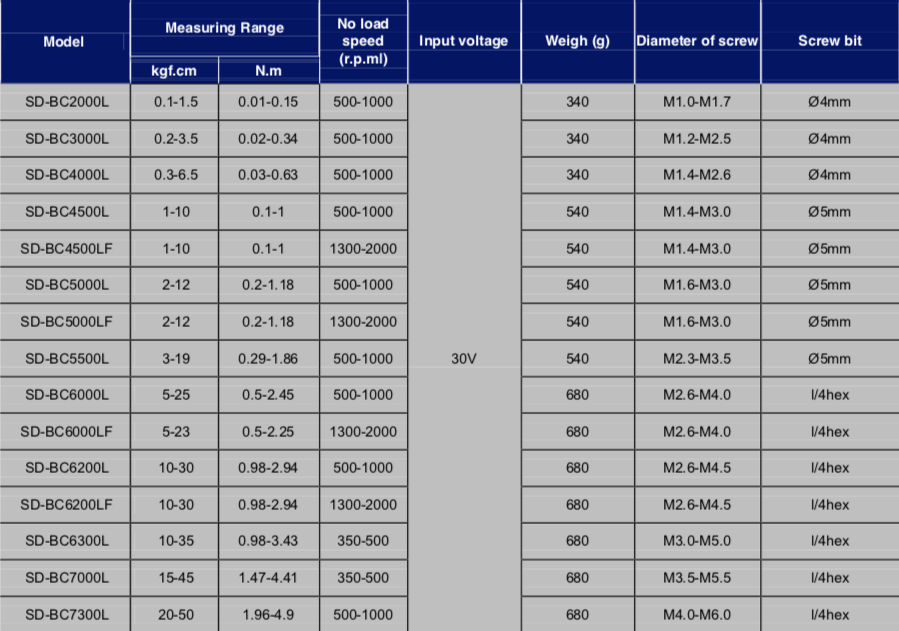

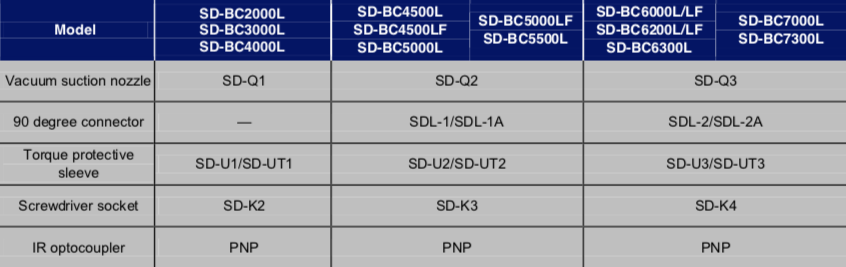

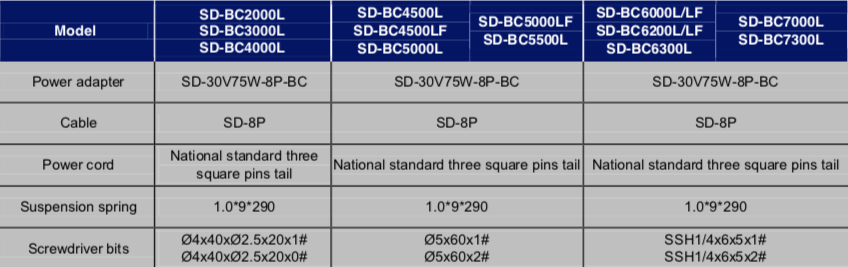

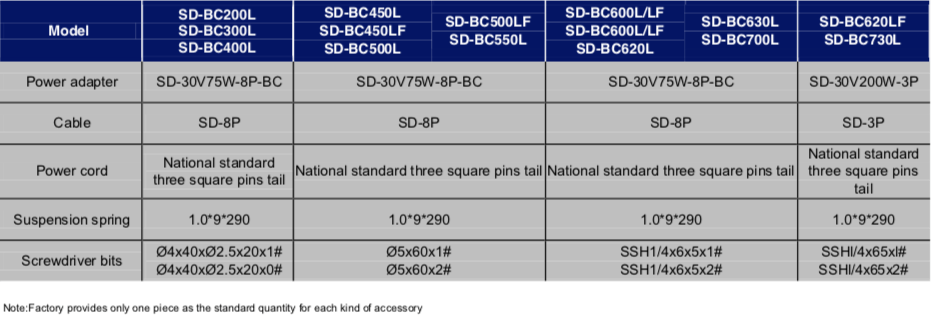

Table
