SD-CA SERIES

ITALIANSD-CA series low voltage brushless screwdrivers




Description

Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.

The high-efficiency brushless motors offer prolonged accuracy of time while the ergonomic design defines high levels of comfort for the operators

Available in the widest range of pairs available on the market, they are available both in the traditional straight versions with lever and push starting, both in the gun versions and for automation use.

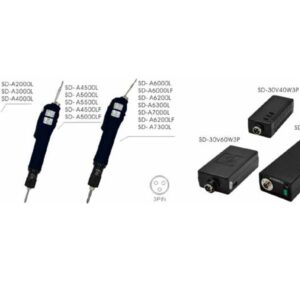

SD-CA SERIES SCREWDRIVER

The SD-CA series of low voltage screwdrivers represents the most complete range in terms of torque range to date on the market. Easy to use and adjust the SD-CA series screwdriver represents the simplicity and accuracy in use and valid and similar alternative to the most commonly used pneumatic tool but with the possibility of signals for interfacing to external devices

The CA series also has a version dedicated to use in automatic fixed applications, specifically designed for robotic installations

Applications

– Ideal for all fastenings with standard joints

– Ideal for applications for manual use as an alternative to pneumatic tools

– Ideal for applications requiring ergonomics and low maintenance costs

– Ideal where an output signal is needed- For automation use installations-

Strengths

– Torque range from 0.01 to 34.3 Nm for manual use

– Torque range from 0.01 to 4.9 for automation use

– High efficiency brushless motors

– Ergonomic design with proven comfort in use

– Controller with output signals

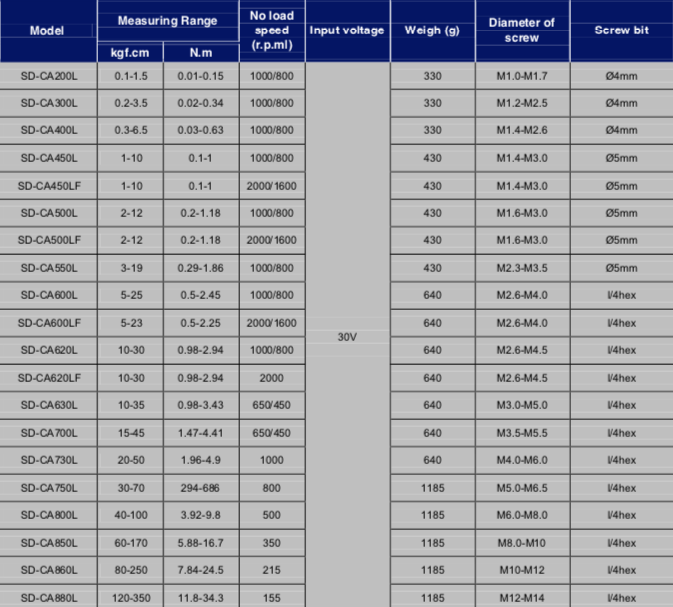

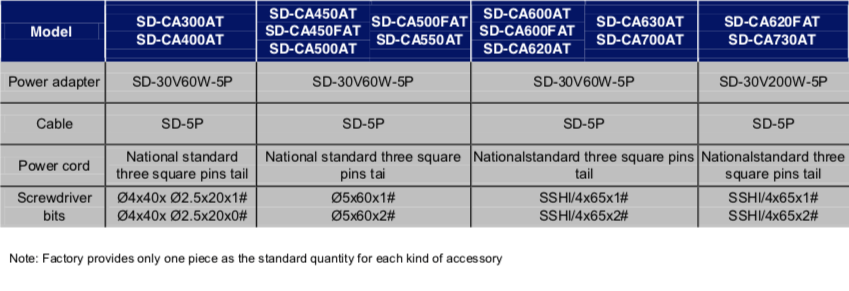

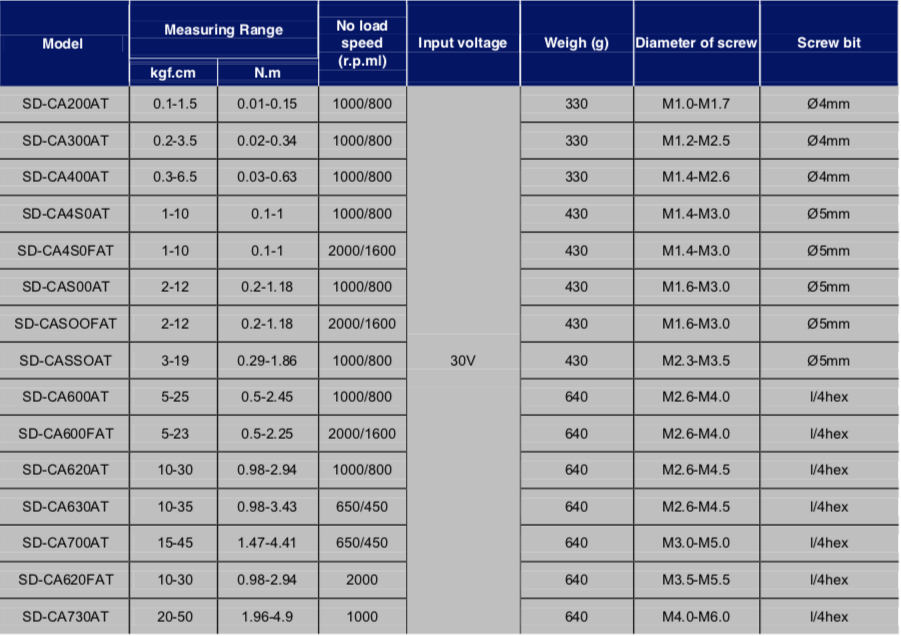

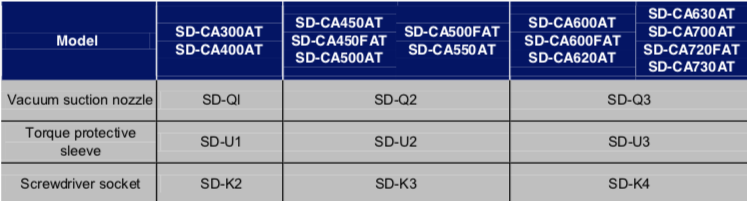

Table

Schermata 2019 07 12 alle 12.40.53  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.41.03  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.41.14  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.41.23  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.41.38  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.40.42  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.40.29  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers Schermata 2019 07 12 alle 12.40.20  Avvitatori per assemblaggio industriale ITALIANSD-CA series low voltage brushless screwdrivers
