SD-NC CONTROLLER

– Can support maximum 20 groups of different parameters for cycling use.
– Single set of data reach up to 24 kinds of parameters to choose settings.
– Tightening status display and tightening process monitoring
– Tightening torque and speed real-time display
– A single electric screwdriver can also set multiple tightening parameters

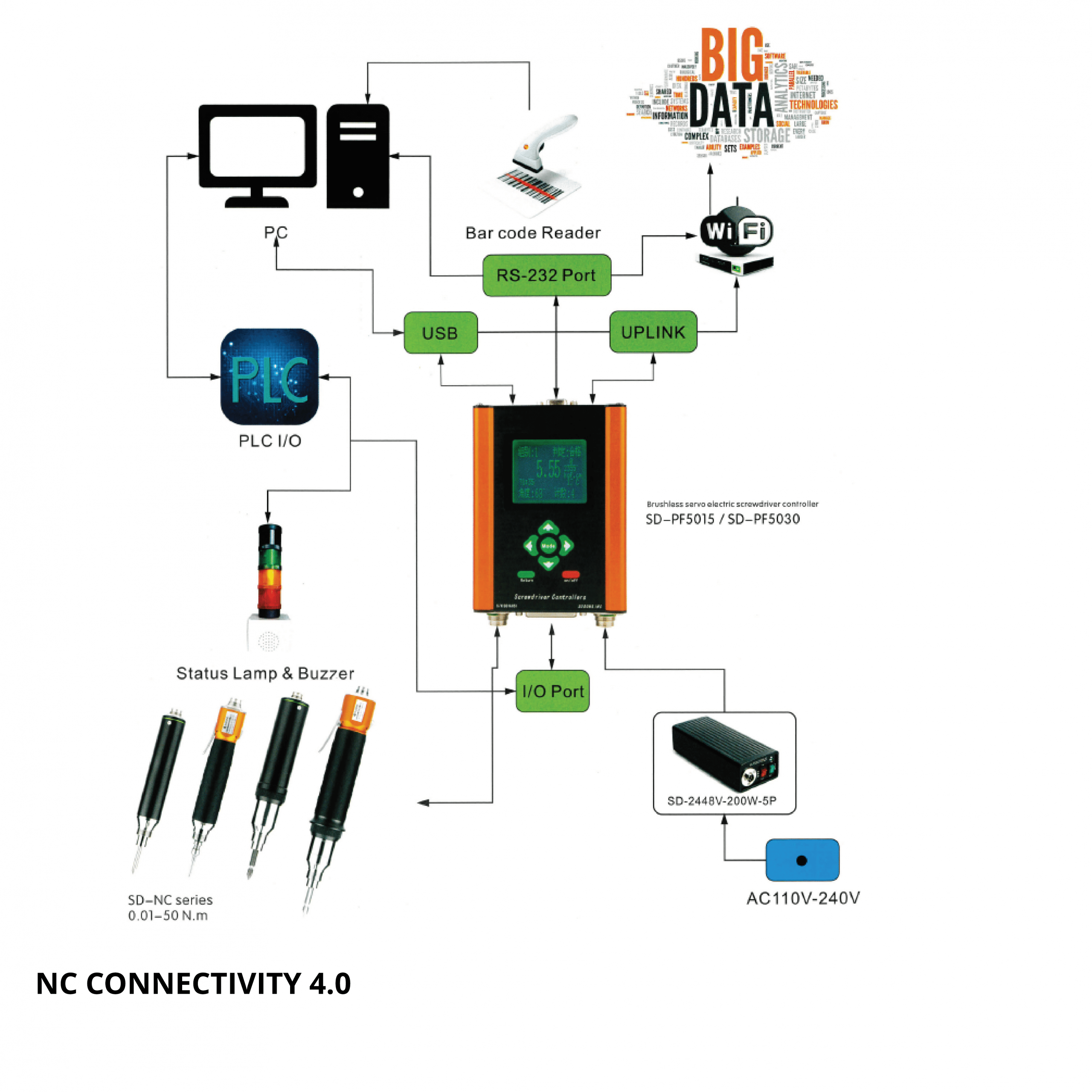

– Connect to the PC or automation device in a variety of ways

Workpiece tightening historical data storage, statistical work qualified rate
– Multiple groups of tightening data storage, output

– The controller can be connected with Airtechnology positioning systems software  (RIGHTWAY) or Airtechnology traceability software (NETCOLLECTOR) or robotic use to implement NC controller in 4.0 industry.




Description

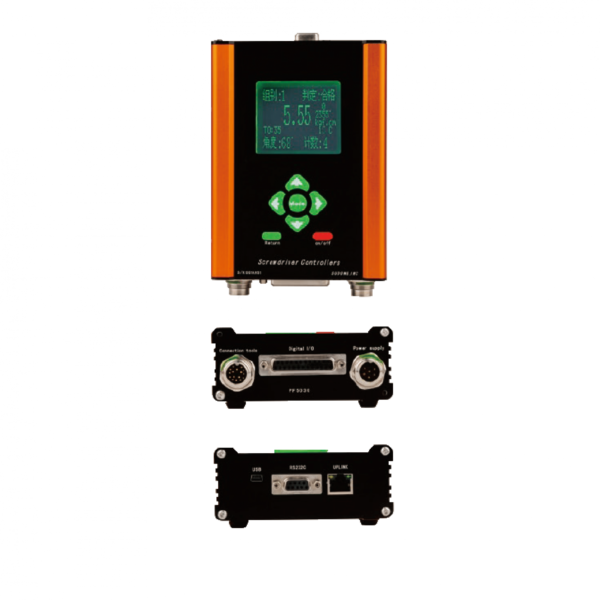

NC- CONTROLLER

– Can support maximum 20 groups of different parameters for cycling use.
– Single set of data reach up to 24 kinds of parameters to choose settings.
– Tightening status display and tightening process monitoring
– Tightening torque and speed real-time display
– A single electric screwdriver can also set multiple tightening parameters

– Connect to the PC or automation device in a variety of ways

Workpiece tightening historical data storage, statistical work qualified rate
– Multiple groups of tightening data storage, output

– The controller can be connected with Airtechnology positioning systems software  (RIGHTWAY) or Airtechnology traceability software (NETCOLLECTOR) or robotic use to implement NC controller in 4.0 industry.

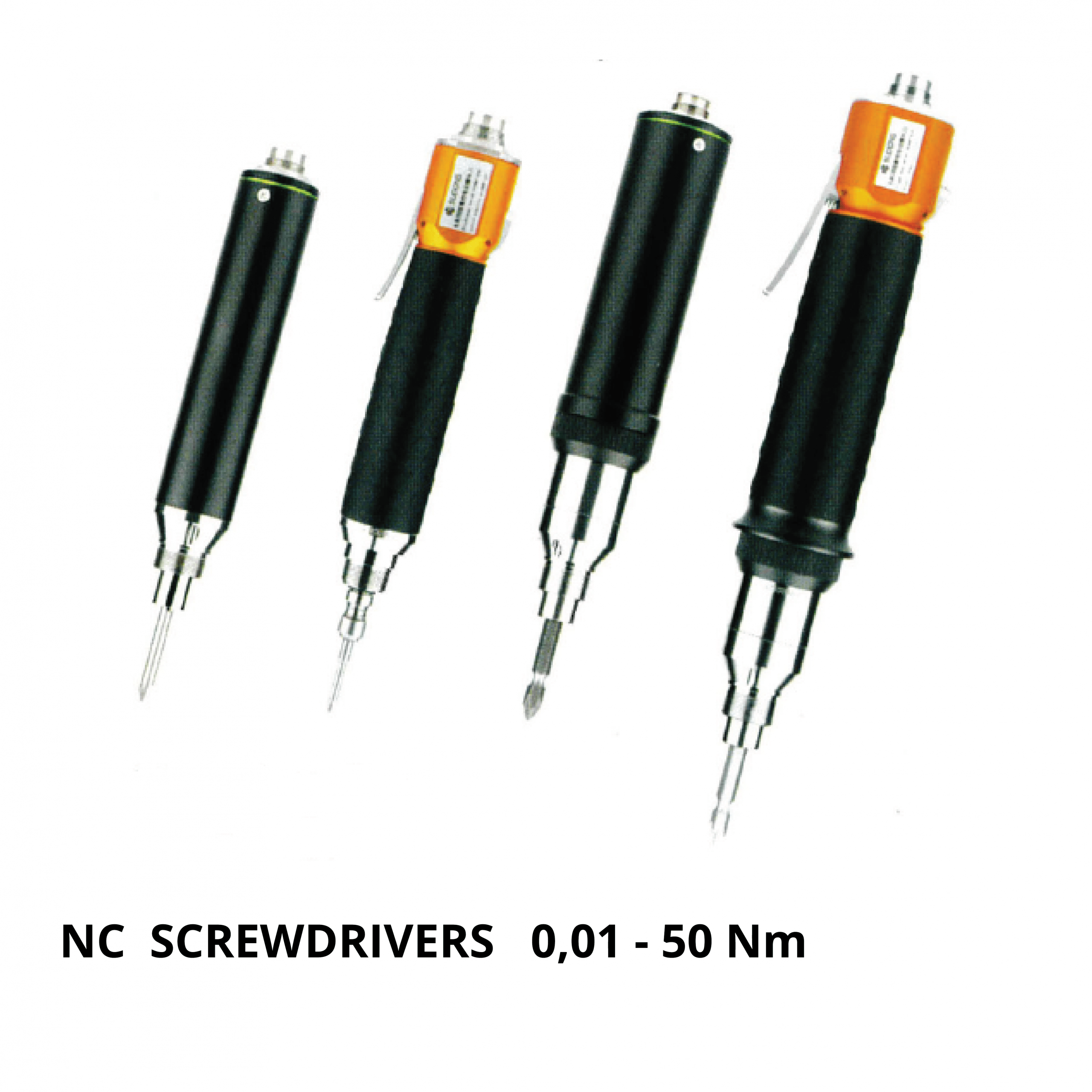

NC –SCREWDRIVER

Sudong brushless servo electric screwdrivers can realize free programming
of the tightening assembly process.Within the performance parameters,it can
realize precise fastening according to different tightening process requirements
to set freely,adjusting torque,speed,waiting time and direction of rotation

Sudong brushless servo electric screwdrivers have high precision and
comprehensive monitoring function; it can ensure the reliability of the tightening
process to the greatest extent.

The adoption of brushless servo motors significantly reduce the running costs, thus
obtain long life of usage cycle,Meanwhile,ensure robust power performance and peak
torque output. It is the ideal choice for NC tightening assembly technique to clients.

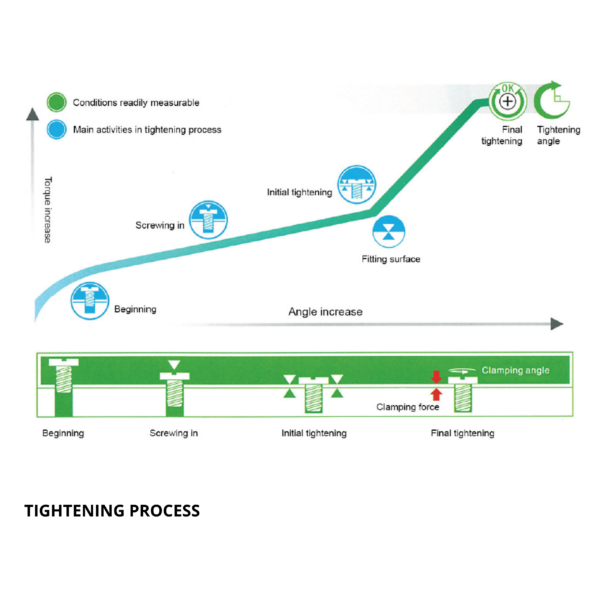

Through the built-in current and rotative angle sensor, it can achieve precise
control of the NC screwdrivers during each tightening process and record all
important parameters of tightening process in real time.

Sudong brushless servo electric screwdriver is based on servo control technology,
to ensure that the torque accuracy of tightening torque assembly controlled within
standard deviation < 3%.

Under normal working condition,Sudong brushless servo electric screwdriver
can achieve C m k>1.67 (torque setting tolerance±10% ),complying with
ISO 5393 and 6Sigma principles .C m k value of 1.67means only 0.6 failure rate
per million screws, that is the qualified rate is as high as 99.99994%.

Sudong brushless servo electric screwdriver adopts brushless motor, supplied with
SD-PF5015 or SD-PF5030 controller, to ensure the flexibility of tightening technique
and reliability of tightening process.

Built-in current and rotatuve angle measurements can realize precise control and
monitoring of Sudong brushless servo electric screwdrivers during each tightening

Applications

-for any critical joint type with ±8% accuracy

-Ideal for bought manual and fixture application use

-Where is require traceability of the data

-Where you need more than a single torque for the same piece

-Where you need a feedback for the operator

Strengths

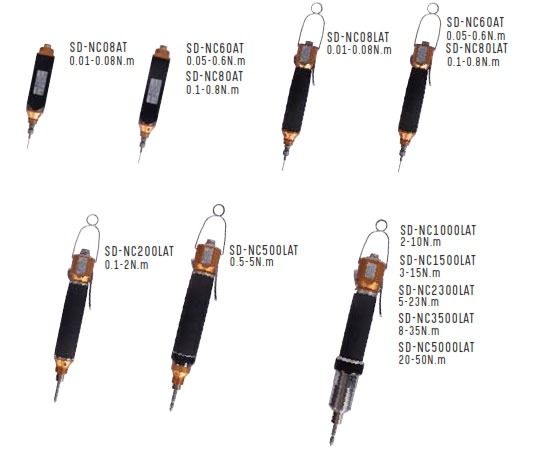

  • Torque Range from 0.08 to 50 Nm
  • Best compact series on the market
  • Two different type of start ( trigger or push) It allows the operator to choose the mode that best suits his application aptitude
  • High ergonomic design , simple to combine with Airtechnology’ reaction arms
  • Integrable accessories  to ensure max flexibility for any  specific needs
  • Process traceability in data , curve, analysis and statistics
  • Complete compatibility with  Airtechnology software for data collections, positioning systems and process managements

Table

TABELLA ELECTRIC SCREWDRIVER SD NC SERIES  Avvitatori per assemblaggio industriale - Can support maximum 20 groups of different parameters for cycling use.
- Single set of data reach up to 24 kinds of parameters to choose settings.
- Tightening status display and tightening process monitoring
- Tightening torque and speed real-time display
- A single electric screwdriver can also set multiple tightening parameters
- Connect to the PC or automation device in a variety of ways
- Workpiece tightening historical data storage, statistical work qualified rate
- Multiple groups of tightening data storage, output
- The controller can be connected with Airtechnology positioning systems software  (RIGHTWAY) or Airtechnology traceability software (NETCOLLECTOR) or robotic use to implement NC controller in 4.0 industry.
