SD-TBC SERIES

Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.




Description

Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.

The high-efficiency brushless motors offer prolonged accuracy of time while the ergonomic design defines high levels of comfort for the operators

Available in the widest range of pairs available on the market, they are available both in the traditional straight versions with lever and push starting, both in the gun versions and for automation use.

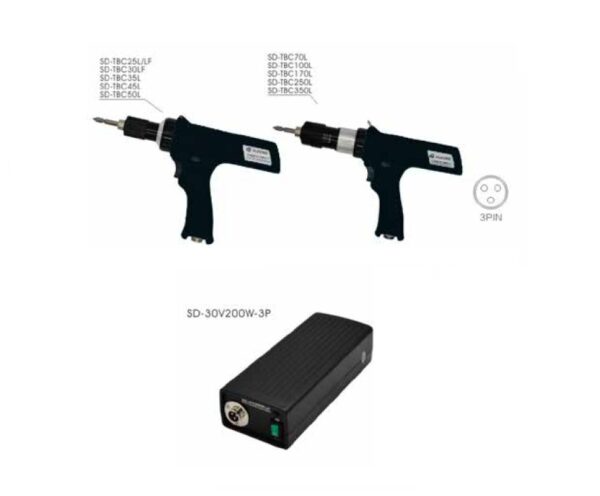

SD-TBC SERIES SCREWDRIVER

The NC-TBC Series is the completion of the SD-BC series, in fact it contains all the features and advantages of this series in a gun body, unique in its kind for delivery, lightness and reliability, proposed in the version with or without display for integrated screw counting.

The wide range makes it ideal for any work that can currently be done with just pneumatic screwdrivers

On request it can be equipped with a system for output signals for interfacing with line interlocks.

Applications

– Ideal for all fastenings with standard joints where required pistol grip

– Ideal for applications for manual use as an alternative to pneumatic tools

– Ideal for applications requiring ergonomics and low maintenance costs-

Strengths

Torque range from 0.01 to 34.9 Nm

– Pistol grip with double power cable connection

– Version with display for counting screws- Brushless motors

– Ergonomic design with proven comfort in use

– On request device for external output signals

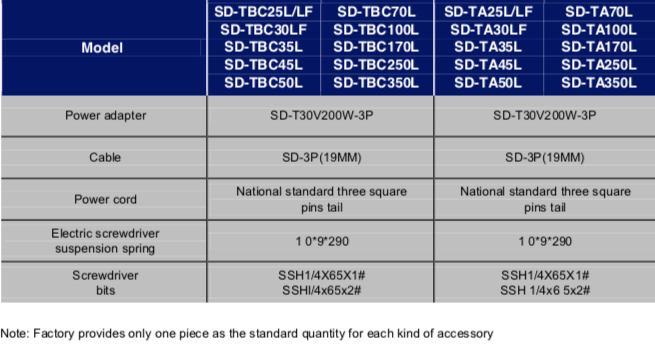

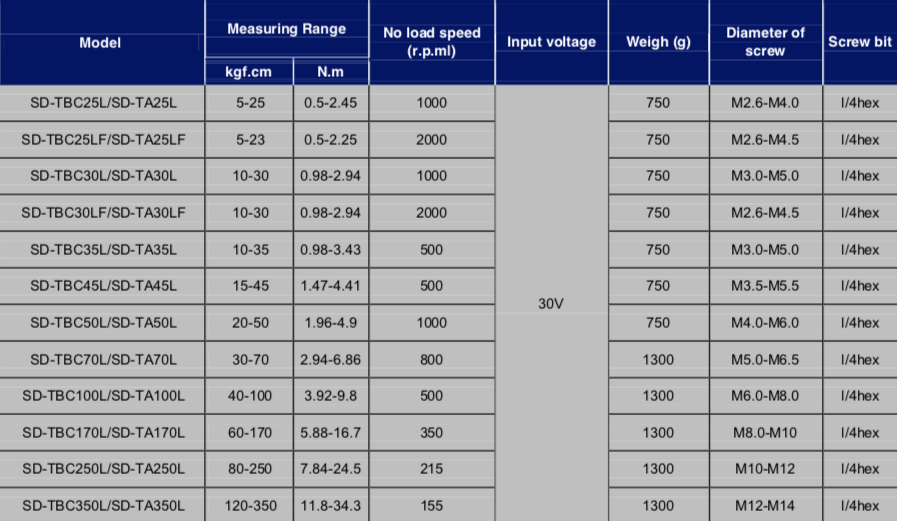

Table

Schermata 2019 07 12 alle 12.46.58  Avvitatori per assemblaggio industriale Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques. Schermata 2019 07 12 alle 12.47.13  Avvitatori per assemblaggio industriale Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques. Schermata 2019 07 12 alle 12.47.25  Avvitatori per assemblaggio industriale Created to define new standards in manual screwing applications, the low voltage brushless screwdriver series is the ideal choice for all applications with low torques.
