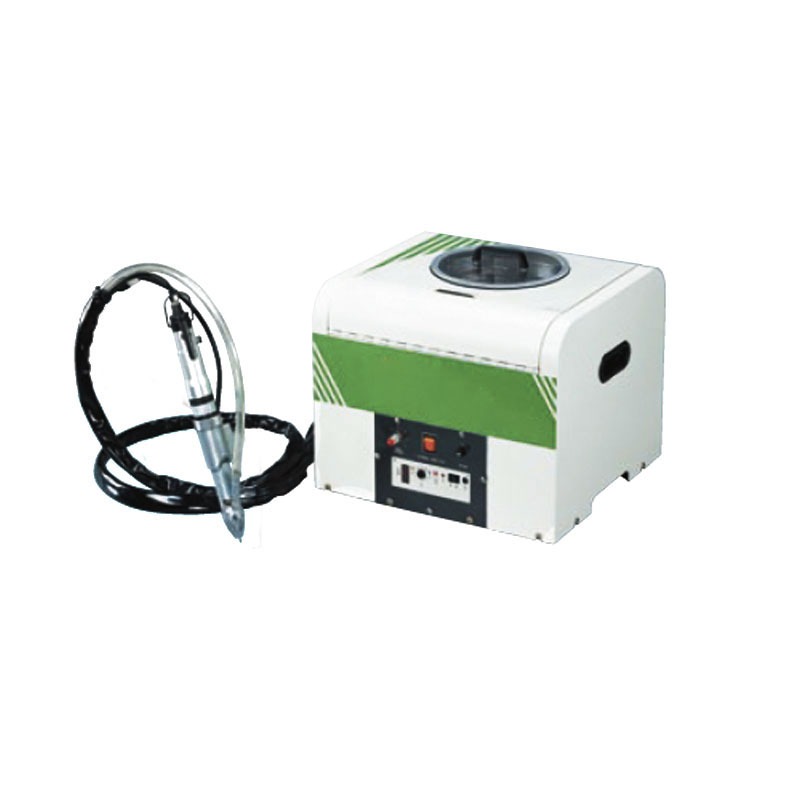

CM501

The CM series self-powered systems are born with the specific aim of screwing medium and large series of screws with greater productivity. The screw is automatically sent to the screw holding device in the screwdriver head and it is possible to proceed immediately with the screwing. the work is simplified because the manual screw gripping phases and their positioning on the screwdriver insert or on the piece are eliminated thus reducing the screwing cycle times




Description

The CM automatic tilting blade feeding systems are among the most precise, silent and reliable. They can be used in manual, semi-automatic or fully automatic applications. The tilting blade system selects the screws from the collection compartment and the doors, by fall, on the guide (version CM-30-CM30T) or on the vibrating linear guide (version CM40-CM40T) and then head towards the shot selector. Screw loading is automatically controlled by an optical fiber that detects or not the presence of the screws thus ensuring continuity of operations. Inside the air pressure selector, it sends the screw, through a flexible tube, to the head holding the screw located on the screwdriver

The CM series self-powered systems offer countless advantages
– They reduce the manual phases of the operator to the sole activation of the system, avoiding the steps of screw insertion on the insert or on the piece
– They ensure a continuous work cycle through a patented and fully automatic feeding system
– They reduce the tightening times by 35%
– Increase productivity, improving operator ergonomics and reducing cycle times
– Reduce costs: by avoiding wasted time for screwing and positioning phases, they allow a return on investment in a very short time.

Applications

  • Applicable to all thread screws from M3 to M8 mm with length up to 30 mm
  • It can be integrated with both self-advancing and pressure start system
  • Suitable for processing in the most varied sectors where speed and production optimization are required
  • Configurable with different engines

Strengths

  • Up to 50 screws per minute.
  • Automatic screw feeding. No more twists and moving actions.
  • Simple structure and easy maintenance.
