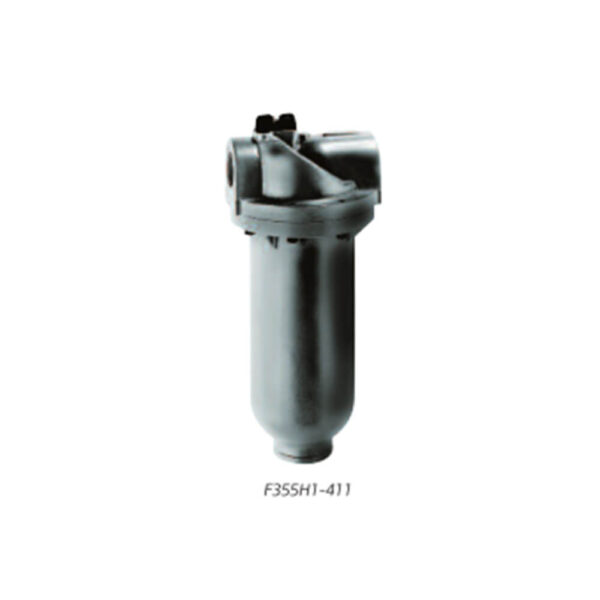

Super Duty Filters

The use of air preparation devices, such as filters, regulators, and lubricators is an excellent means of keeping your tools and equipment to operate at their peak performance




Category:

Description

Clean air is a key ingredient that enables effective and efficient operation of tools and machinery.

The use of air preparation devices, such as filters, regulators, and lubricators is an excellent means of keeping your tools and equipment to operate at their peak performance

PERFORMANCE:

ARO FLO SERIES FRL’s set the standard for flow performance. Simply put, air flows better through ARO FLO filters, regulators and lubricators than almost any air filter devices. This means more air is passed during the air preparation process and your equipment can perform at its peak performance.

MODULARITY:

All ARO FLO accessories are designed to integrate with each other within each size range. From pipe adapters to T-brackets, your complete FRL assembly and its individual components can be easily, safety, and quickly assembled with a minimum of tools.

SAFETY:

Providing safe tools and equipment is our top priority. ARO FLO SERIES are designed with integrated safety features such as locking bowls and clear markings. Accessories such as lockout valves, check valves allow the air supply to be safely managed and controlled.

Applications

Strengths

  • High-flow filter element with 5-micron filtration.
  • Differential pressure indicator to eliminate the guesswork of
    element replacement.
  • Robust cast aluminium housings to withstand operating
    pressures up to 20.7bar (300 psig). Max supply pressurelimited
    to 103 bar (150 psig) with pressure indicator.
  • All filters have plated steel Internal components and fluocarbon
    seals. Filter insert from Polyethylene/polyprofylene.
  • Accessory: part no. 104512, all sizes wall mount pipe clamp.

Table
