Dial Air Regulators

The use of air preparation devices, such as filters, regulators, and lubricators is an excellent means of keeping your tools and equipment to operate at their peak performance




Category:

Description

Clean air is a key ingredient that enables effective and efficient operation of tools and machinery.

The use of air preparation devices, such as filters, regulators, and lubricators is an excellent means of keeping your tools and equipment to operate at their peak performance

PERFORMANCE:

ARO FLO SERIES FRL’s set the standard for flow performance. Simply put, air flows better through ARO FLO filters, regulators and lubricators than almost any air filter devices. This means more air is passed during the air preparation process and your equipment can perform at its peak performance.

MODULARITY:

All ARO FLO accessories are designed to integrate with each other within each size range. From pipe adapters to T-brackets, your complete FRL assembly and its individual components can be easily, safety, and quickly assembled with a minimum of tools.

SAFETY:

Providing safe tools and equipment is our top priority. ARO FLO SERIES are designed with integrated safety features such as locking bowls and clear markings. Accessories such as lockout valves, check valves allow the air supply to be safely managed and controlled.

Applications

Strengths

These regulators feature a transparent presure-calibiated, Non rising adjustment dial which allows one to dial any Secondary pressure. If a gauge is required for monitoring reasons, two 1/4″ gauge ports are provided: however, these are usually used for additional outlet port In less than 270° turn, the full secondary pressure range can be dialed. This feature is particularly advantageous if secondary pressure must be changed frequently.
• Regulator body and bonnet from zinc. Piston foam acetal (R21) or zinc (R31 and 41). Valve assembly from brass, Nitrile and acetal. Nitrile seals.
Max inlet pressure 20.7 bar (300 psi) – Adjusting
Pressure range 0 to 11 bar (0-160psi

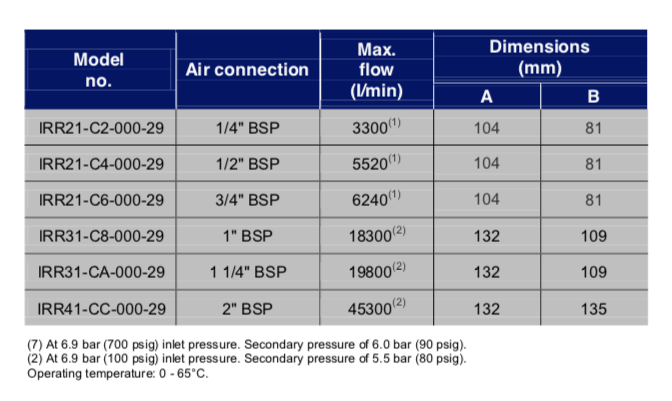

Table
