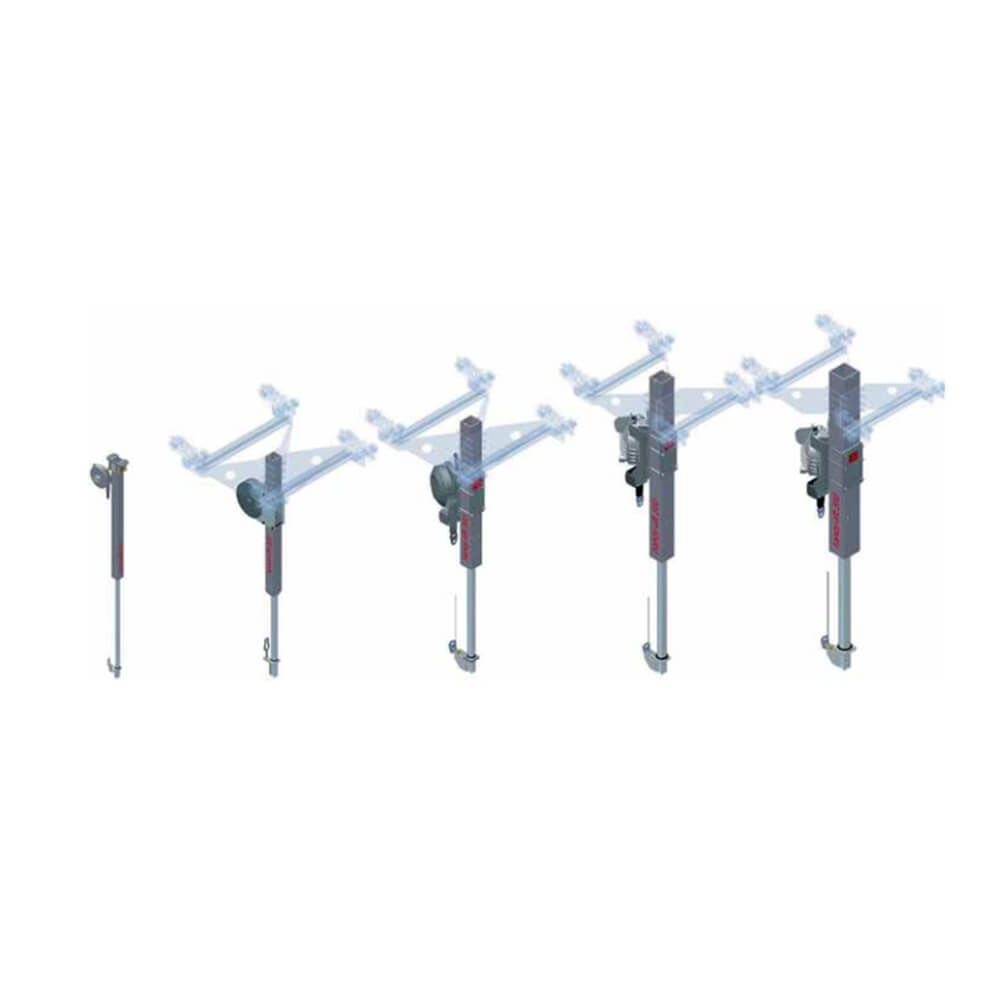

HL Series

Ideal for all operations where ergonomics and safety are essential for the use of the screwdriver, the HANDYLift® arm series, thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement




Description

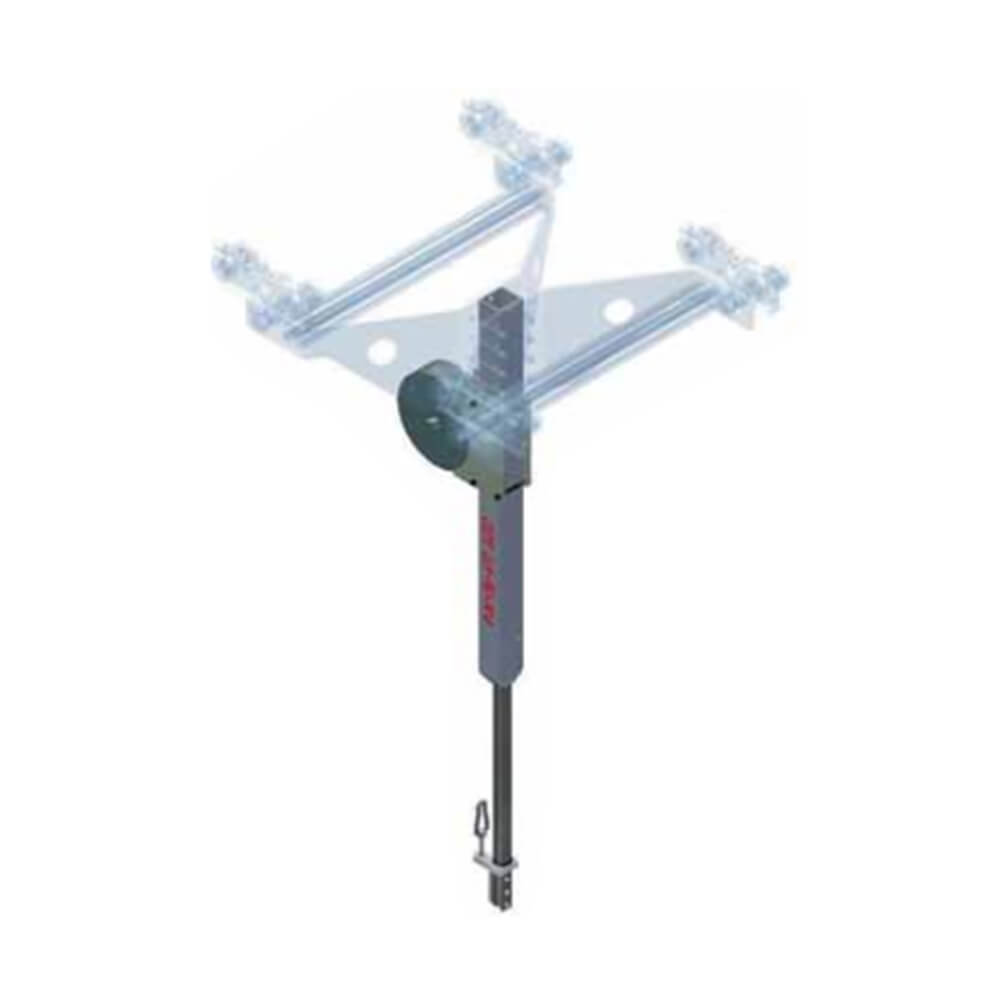

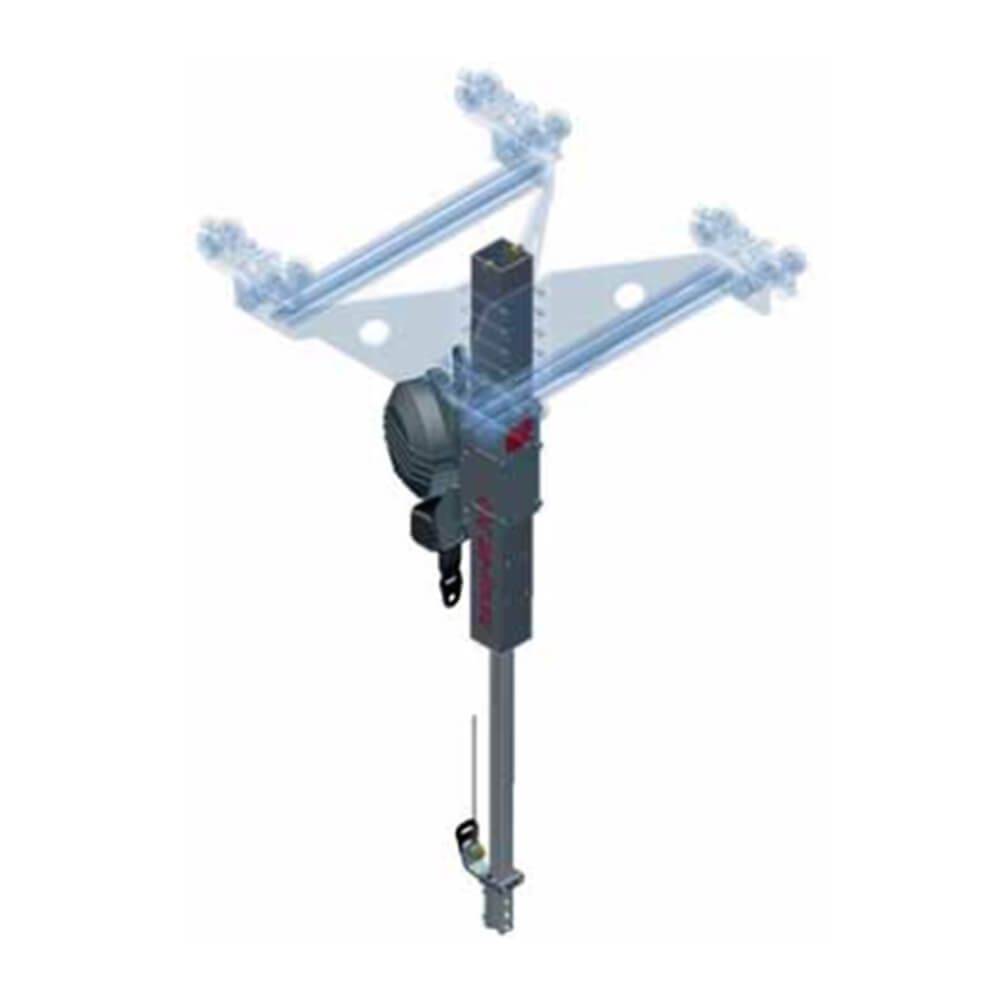

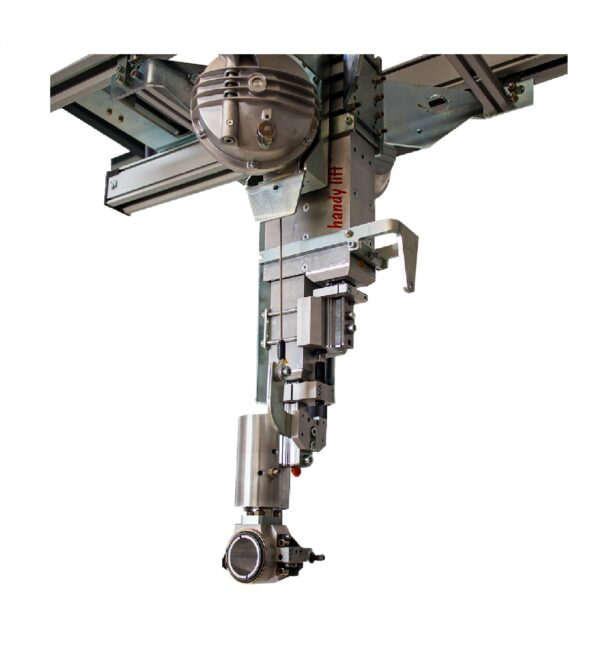

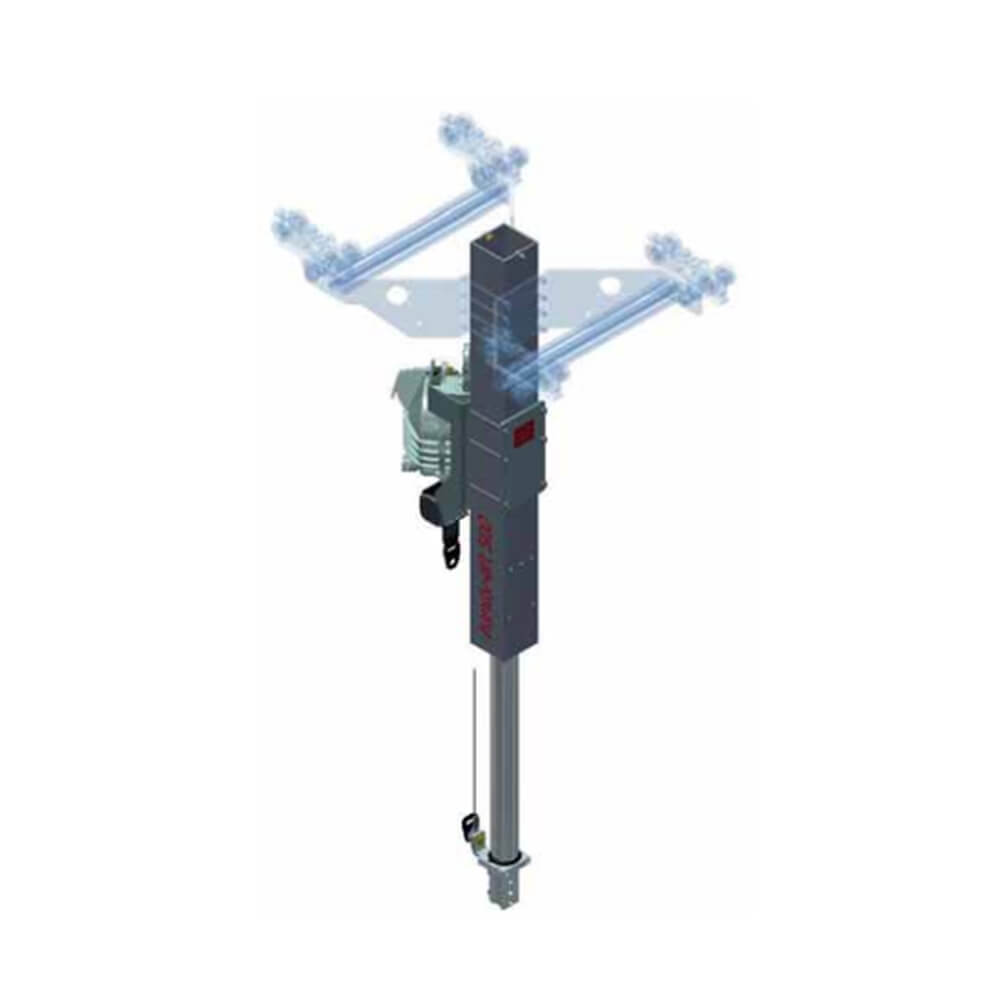

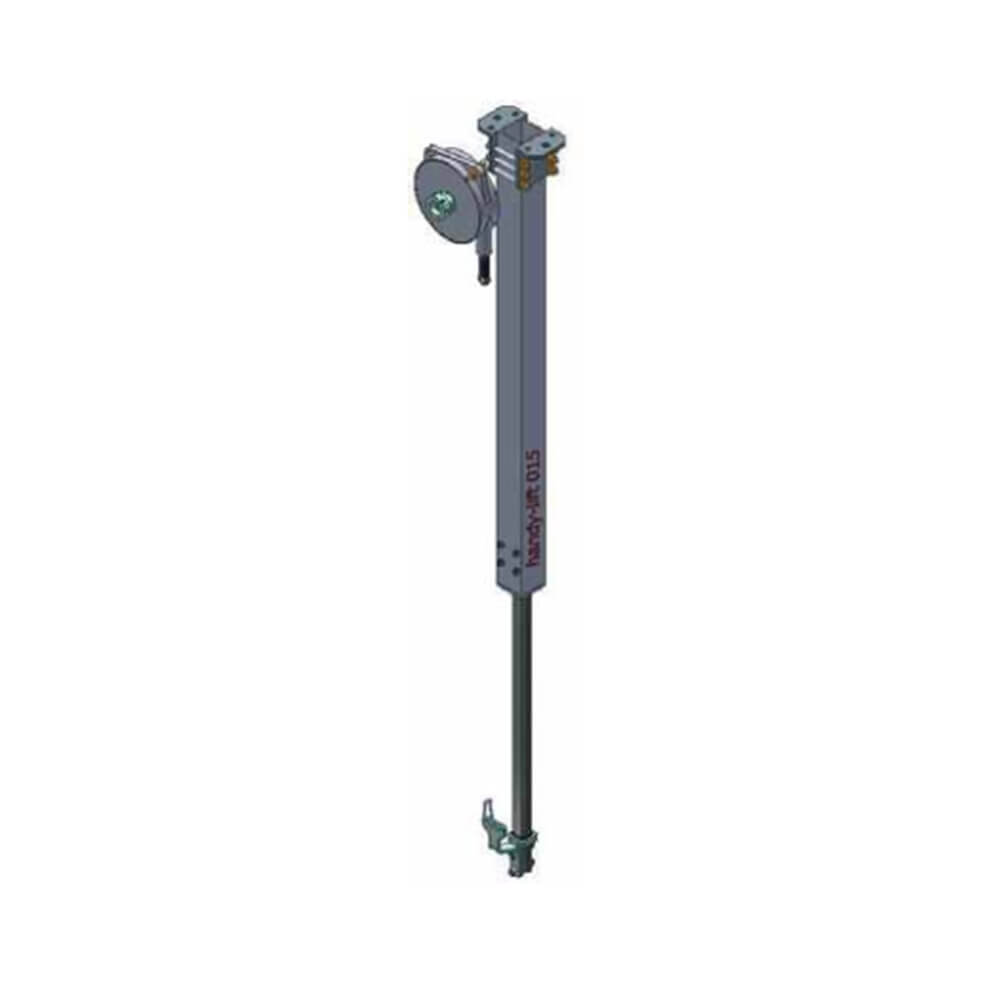

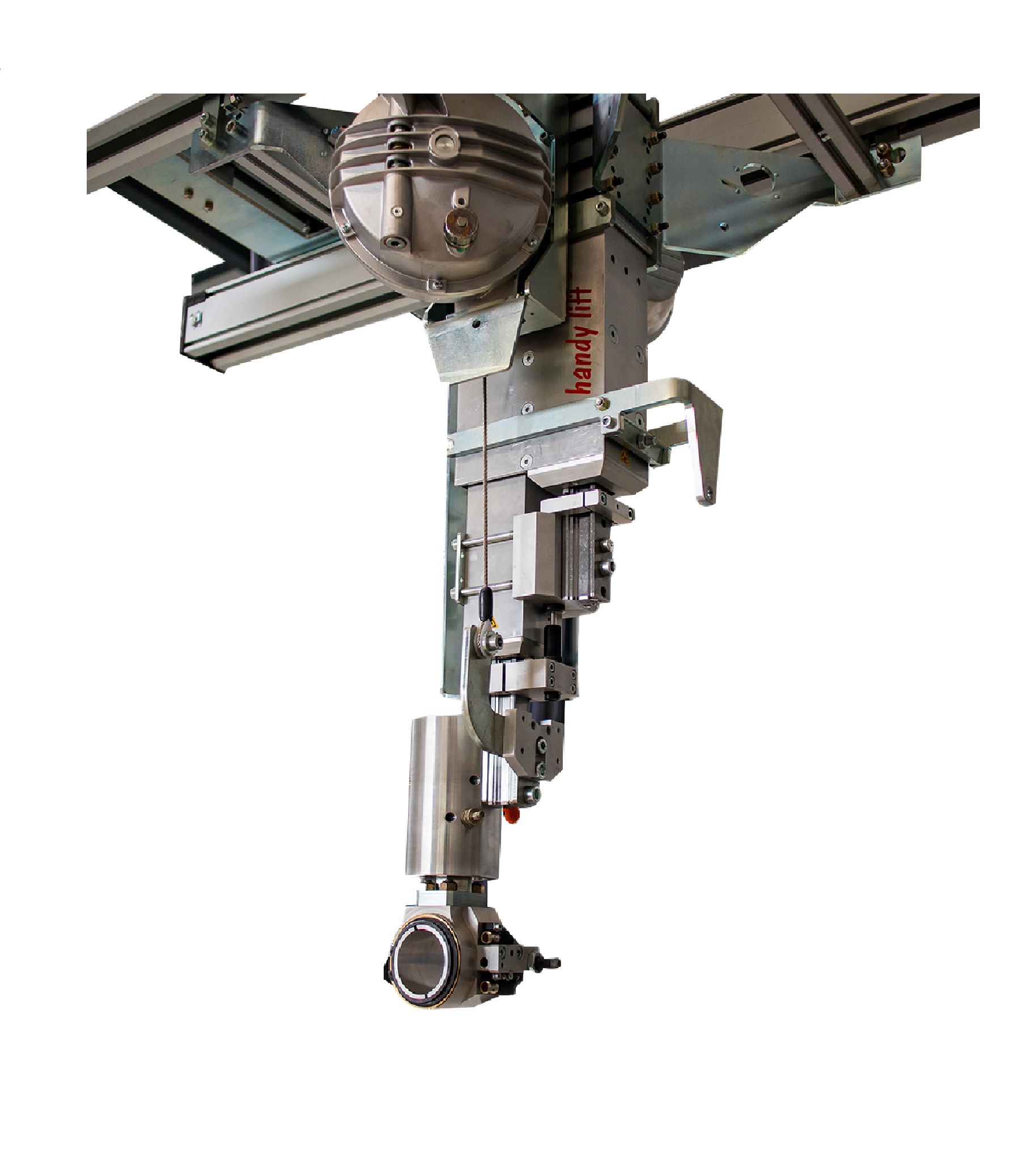

Handy Lift series telescopic arms represent the most effective and efficient system for reaction deriving from the use of tools hanging from above. Normally used in various positions on the assembly lines, they allow the anchoring of its structure on standard runways (the main brands on the market), guaranteeing the use of tightening systems, even where the spaces by type of assembly or location are fundamental for operator movement.
The arms of the HANDYLift® series can be equipped with position sensors up to 3 movement axes and, as for the CA series, they have numerous Filebus interfaces that allow their integration directly by customers on proprietary platforms.
The Handy Lift series can also be offered by us in a single solution (turnkey) together with our own software RIGHT WAY® and the sensor management module, becoming as well as an indispensable tool for the control of the tightening process, also managing the different phases. of assembly having the certainty that the entire production process has been respected and that the traceability of the data has been maintained. Accessories for anchoring tools as shown in our catalog, special versions and customizations available on request

Applications

Ideal for ergonomically supporting any manual or semi-automatic work station in sliding lines whose tools must be hung in the upper part with rails or flags

Strengths

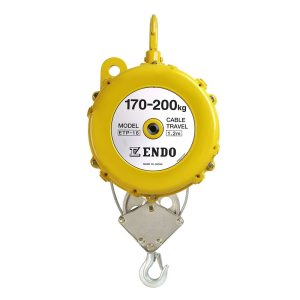

balancer with sturdy design and die-cast aluminum body
• high flexibility and low wear steel cable
• easy handling during screwing,
• usable and adaptable for many types of work other than screwing such as welding, drilling, threading and more
• Precise and smooth linear guide with recirculating ball guide
• Wide range of torque reaction
• Optimum and smooth weight compensation with safety fall protection
• Adjustable payload
• No maintenance required
• Maximum flexibility in the optimal configuration for each specific application
• Wide range of accessories for different applications available
• universal interface for applications

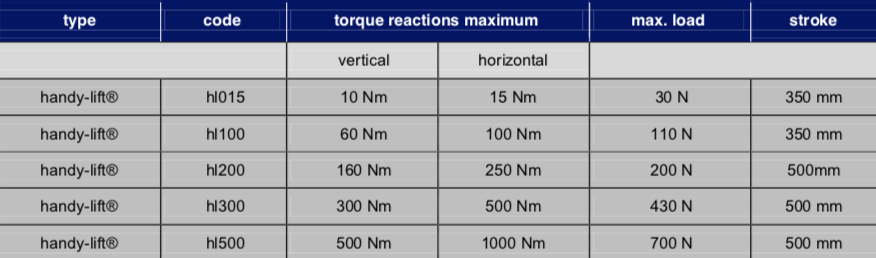

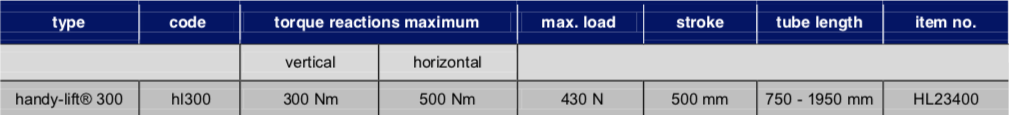

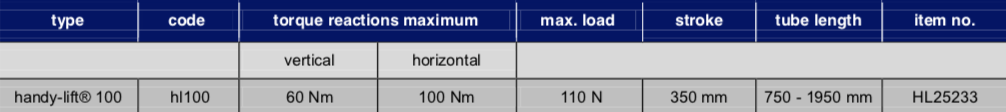

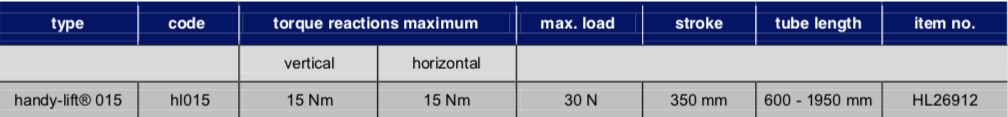

Table
