RUNDOWN ADAPTER

The purpose of using a RDA ( Run Down Adapters) is to simulate the fastening process of a screw. These durable run down adapters are designed to provide consistent and reliable torque readings for use with power driven torque control tools.




Categories: ,

Description

The purpose of using a RDA ( Run Down Adapters) is to simulate the fastening process of a screw. These durable run down adapters are designed to provide consistent and reliable torque readings for use with power driven torque control tools. The RDA reduces the impact and irregular peaks that cause poor repeatability.

The run down adapter is mounted in-line between the tool’s drive and the torque tester or sensor, which may require other adapters or attachments. The RDA is designed to operate in a clockwise direction only. Apply torque until RDA is run down and the tool shuts-off. Then note or save the readings with the torque analyzer. After each run down, the RDA should be backed off just enough to fully release the tension. It’s important not to back out completely or the adapter will unscrew and could be damaged on the next rundown by cross-threading.

Applications

Ideal during the testing of  power tools  pneumatic , electric, and torque and angle

Strengths

  • Designed to provide consistent and reliable torque readings for use with power driven torque control tools.
  • Adapter is mounted in-line between tool drive and transducer.
  • Hardened thread components, increase accuracy and life.
  • Square drives conform to ASME B107 standards for proper fit.
  • Non-rotating body for improved safety.
  • Compact size and lightweight.
  • Operates in clockwise direction only. After each run down, the RDA should be completely backed-up

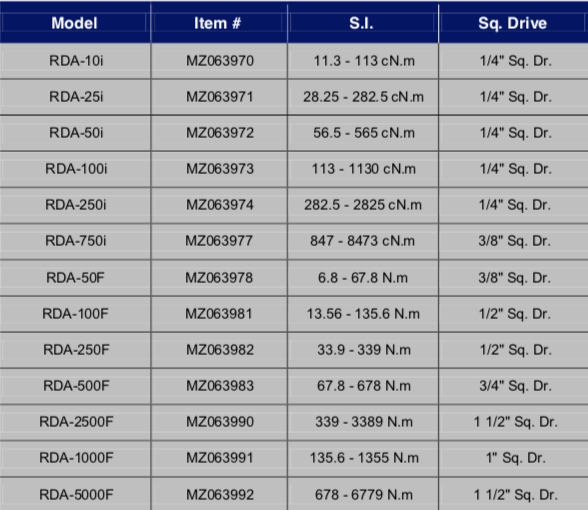

Table

Schermata 2019 07 11 alle 17.45.55 Avvitatori per assemblaggio industriale The purpose of using a RDA ( Run Down Adapters) is to simulate the fastening process of a screw. These durable run down adapters are designed to provide consistent and reliable torque readings for use with power driven torque control tools.
