sensori di coppia e angolo rotanti brushless BLRTSX-A mountz

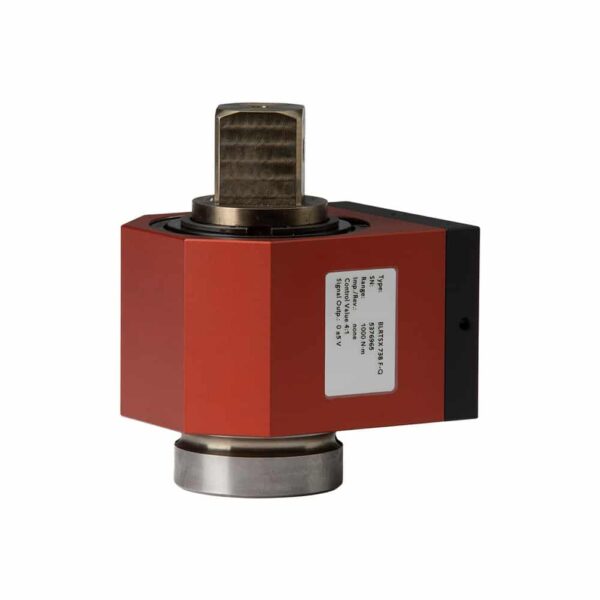

BLRTSX-A

The BLRTSX-A brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.




Categories: , Tag:

Description

The BLRTSX-A brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.

Applications

  • Indicate to measuring torque on pulse tools with strong vibrations
  • Indicate to measuring torque on pneumatic tools
  • Indicate to measuring torque on electric tools
  • To measure the torque being applied from the tools and the fastners
  • To measure breakaway torque
  • Integrate on Airtechnology equipment and RIGHTWAY® test bench to verify the torque and angle brushless tool

Strengths

  • Non-contact signal transfer and maintenance free.
  • Angle Output: 2-channel quadrature, 360 pulses per rotation.
  • Ability to measure the rotation angle of a fastener. Joint rate & breakaway torque can be measured too.
  • The common brush bounce that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
  • Compact design & bi-directional.
  • For use with most power tools, high RPM tools, or rotational measurement applications.
  • Features ARCII technology, an instant auto-recognition system of the BLRTSX-A connected to the PTT or LTT.
  • Accuracy ± .2% of full scale*.

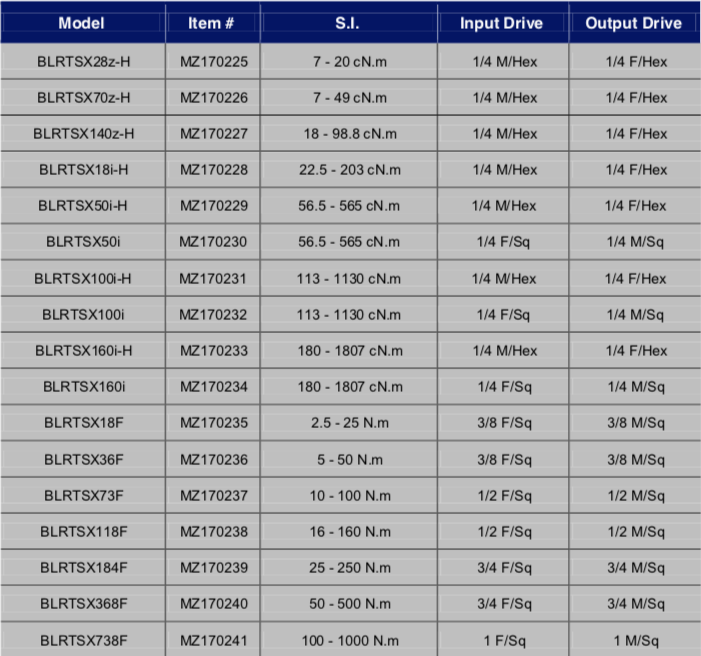

Table

Schermata 2019 07 11 alle 16.57.32 Avvitatori per assemblaggio industriale The BLRTSX-A brushless rotary torque & angle sensors an ideal torque-measuring solution for applications where accuracy and reliability rank paramount. Can be used for testing real-time torque or for checking the breakaway torque (first movement) of a fastener.
