HF Series

Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement




Categories: ,

Description

Ideal for use on workstations on the bench, the Handy Flex series offers a wide range in terms of range of reaction torque (35-500 Nm) and fixing (see options in the catalog) making it the only essential accessory really flexible to enslave the workstation. The different anchoring and handling options of the Handy Flex series guarantee the operator maximum precision in the assembly phase, while the wide range of accessories allows their use with any type of tool. The Handy Flex arms can also be equipped with position sensors up to 3 motion axes and, as for the CA series, they have numerous Filebus interfaces that allow their integration directly by customers on proprietary platforms.


The Handy Flex series can also be offered by us in a single solution (turnkey) together with our own software RIGHT WAY and the sensor management module, becoming as well as an indispensable tool for the control of the tightening process also manager of the different phases of assembly with the certainty that the entire production process has been respected and that the traceability of the data has been maintained.

Applications

• Ideal for ergonomically supporting any manual or semi-automatic workstation (automatic pelletizing lines)

Strengths

• balancer with sturdy design and die-cast aluminum body
• high flexibility and low wear steel cable
• easy handling during screwing,
• usable and adaptable for many types of work other than screwing such as welding, drilling, threading and more
• Precise and smooth linear guide with recirculating ball guide
• Wide range of torque reaction
• Optimum and smooth weight compensation
• Adjustable payload
• No maintenance required
• Maximum flexibility in the optimal configuration for each specific application
• Wide range of accessories for different applications available
• universal interface for applications

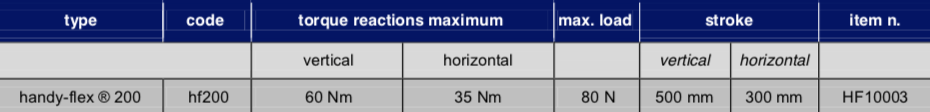

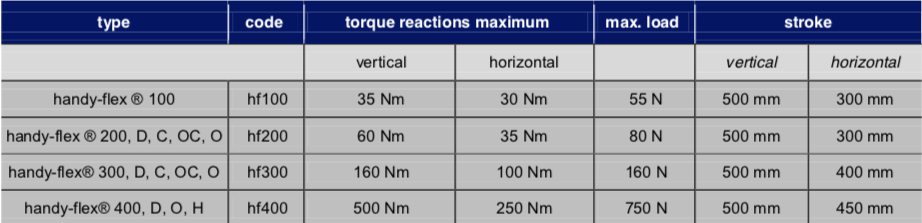

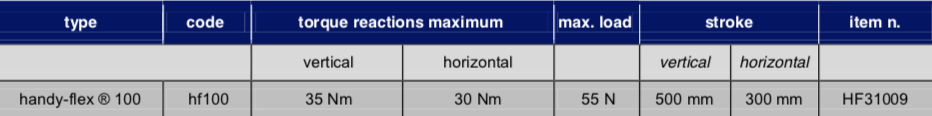

Table

Schermata 2019 07 11 alle 16.18.02 Avvitatori per assemblaggio industriale Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement Schermata 2019 07 11 alle 16.17.49 Avvitatori per assemblaggio industriale Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement Schermata 2019 07 11 alle 16.17.36 Avvitatori per assemblaggio industriale Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement Schermata 2019 07 11 alle 16.17.26 Avvitatori per assemblaggio industriale Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement Schermata 2019 07 11 alle 16.17.14 Avvitatori per assemblaggio industriale Ideals for all operations where ergonomics and safety are essential for the use of the screwdriver, the BRP arm series thanks to the breadth of its range and the vast quantity of accessories, can be easily adapted to any production requirement
