The battery-powered impact hydraulic screwdriver by BAMASON represents the latest technological breakthrough in field of screwdriving
In confirmation of their accuracy, BAMASON tools have been tested and certified by the leading manufacturers in the MVI sector as the one and only tools that are able to guarantee torque accuracy with an efficiency of 10 per cent, and are accompanied by certification guaranteeing this efficiency from the manufacturer.
The main advantages of the TPA series hydraulic impact cordless screwdriver:
- The stop point can be adjusted to suit different applications and types of joints, thereby achieving optimum performance and operational efficiency
- The stop point setting can also be locked to prevent operators from changing it inadvertently
- To minimise the effect of oil temperature within the pulse in order to improve torque accuracy
- The Reverse Locked mode ensures that the instrument always runs forwards
- The contactless switch ensures a longer service life for the switch
- The advanced brushless motor ensures a longer service life and greater efficiency
- The ergonomic design of the handle makes the user feel more comfortable
- Torque accuracy: Conforms to ISO 5393 Cmk 1.67 with tolerance ± 10%.>

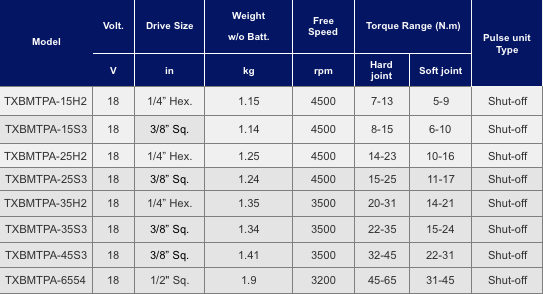

TPA Series
| Modello | Volt. (V) | Attacco (IN) | Peso (no batteria) (Kg) | Velocità (rpm) | Range di Coppia G. Rigido (Nm) | Range di Coppia G.Elastico (Nm) | Tipo unità a impulsi |
|---|---|---|---|---|---|---|---|
| BMTPA-15H2 | 18 | 1/4” Hex. | 1.15 | 4500 | 7-13 | 5-9 | Shut-off |
| BMTPA-15S3 | 18 | 3/8” Sq. | 1.14 | 4500 | 8-15 | 6-10 | Shut-off |
| BMTPA-25H2 | 18 | 1/4” Hex. | 1.25 | 4500 | 14-23 | 10-16 | Shut-off |
| BMTPA-25S3 | 18 | 3/8” Sq. | 1.24 | 4500 | 15-25 | 11-17 | Shut-off |
| BMTPA-35H2 | 18 | 1/4” Hex. | 1.35 | 3500 | 20-31 | 14-21 | Shut-off |
| BMTPA-35S3 | 18 | 3/8” Sq. | 1.34 | 3500 | 22-35 | 15-24 | Shut-off |
| BMTPA-45S3 | 18 | 3/8” Sq. | 1.41 | 3500 | 32-45 | 22-31 | Shut-off |
| BMTPA-65S4 | 18 | 1/2” Sq. | 1.9 | 3200 | 45-65 | 31-45 | Shut-off |
BAMASON cordless screwdrivers are equipped with powerful brushless motors and high-efficiency lithium-ion batteries and are able to cope with all assembly tasks thanks to their wide range of models and tightening torques:
- Cordless Mechanical Clutch Screwdrivers (TSC series, TWB series, TWD series) cover the torque range0.8 – 90 Nm
- Cordless Hydraulic Impact Wrenches (TPA series) cover the torque range 5-65 Nm
- Torque-controlled cordless impact wrenches (TIC series) cover the torque range 2-120 Nm
- Cordless angle torque screwdrivers with transducer (NPA-NRA series) cover the torque range 3-60 Nm.
